Explorer 90 SAME Explorer 90 Specifications & Technical Data (2020—2025)

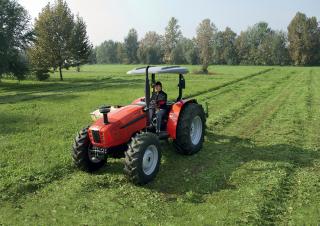

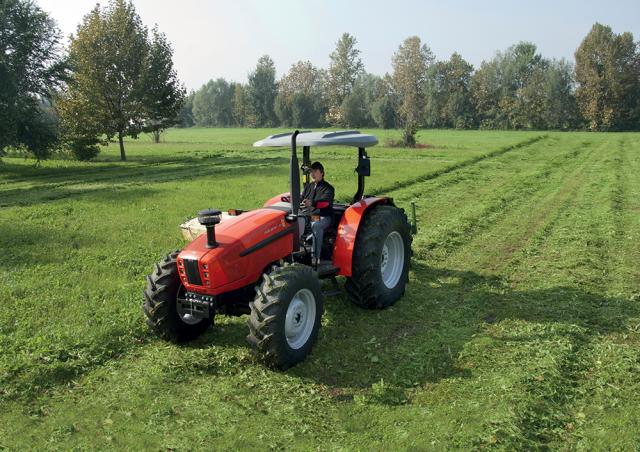

The SAME Explorer 90 is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 3.62 tons and is powered by an…

The SAME Explorer 90 is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 3.62 tons and is powered by an engine with a power output of 65 kW. The tractor has a transport length of 4.1 meters and can travel at a speed of 40 km/h. It has a transport width of 2.341 meters and a transport height of 2.6 meters. The tractor is equipped with a cabin as special equipment.

4WD Tractors SAME Explorer 90

Technical specs - Explorer 90 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
Explorer
Back tyres
16.9 R34
Front tyres
14.9 R24
Transport length
4.1 m
Transport width
2.341 m
Transport height
2.6 m
Travel speed
40 km/h
Transmission
40/40
Transmission type
m
Weight
3.62 t
Control unit
-/1 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
1000.4 WTI
Displacement
4 l
Revolutions at max torque
2300 rpm
No. of cylinders
4
Emission level
III A

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Explorer 90 FAQ

When was the SAME Explorer 90 manufactured?

The SAME Explorer 90, part of the Explorer series, was first produced in 2020.

What is the weight of the SAME Explorer 90?

The SAME Explorer 90 has a weight of 3.62 tonnes.

What are the transport dimensions of the SAME Explorer 90?

The SAME Explorer 90 has a transport length of 4.1 meters, a transport width of 2.34 meters, and a transport height of 2.6 meters.

What is the engine power of the SAME Explorer 90?

The SAME Explorer 90 has an engine power of 65 kW.

What is the travel speed of the SAME Explorer 90?

The SAME Explorer 90 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Explorer 90?

The SAME Explorer 90 has a mechanical transmission with 40 forward speeds and 40 reverse speeds.

What are the maneuverability specifications of the SAME Explorer 90?

The SAME Explorer 90 features hydraulic steering for its maneuverability.

What are the wheel and tyre specifications of the SAME Explorer 90?

The SAME Explorer 90 has back tyres sized 16.9 R34 and front tyres sized 14.9 R24.

How much is a SAME Explorer 90 4WD Tractor (2020u20132025) worth?

The residual value of the SAME Explorer 90 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
