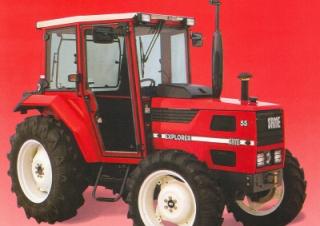

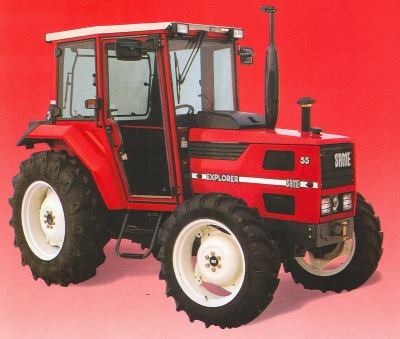

Explorer 55 SAME Explorer 55 Specifications & Technical Data (1983—1986)

Engine power: 41kW – Back tyres: 14.9-30 – Front tyres: 11.2-24 – Transport length: 3.83m – Transport height: 2.51m – Travel speed: 23.3km/h

4WD Tractors SAME Explorer 55

Technical specs - Explorer 55 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
41 kW
Back tyres
14.9-30
Front tyres
11.2-24
Transport length
3.83 m
Transport height
2.51 m
Travel speed
23.3 km/h
Transmission
15/15
Transmission type
m
Weight
2.96 t
Engine manuf.
SAME
Engine type
N/a
Displacement
2.8 l
No. of cylinders
3
Cylinder bore x stroke
103x110 mm

More technical details, like: model series, transport width, control unit, steering, three point category, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Explorer 55 FAQ

When was the SAME Explorer 55 manufactured?

The SAME Explorer 55 was manufactured from 1983 to 1986.

What is the weight of the SAME Explorer 55?

The SAME Explorer 55 has a weight of 2.96 tonnes.

What are the physical dimensions of the SAME Explorer 55 in terms of transport length and height?

The SAME Explorer 55 has a transport length of 3.83 meters and a transport height of 2.51 meters.

What is the engine power of the SAME Explorer 55?

The SAME Explorer 55 has an engine power of 41 kW.

What is the travel speed of the SAME Explorer 55?

The SAME Explorer 55 has a travel speed of 23.3 km/h.

What are the drivetrain and transmission specifications of the SAME Explorer 55?

The SAME Explorer 55 has a mechanical transmission with 15 forward speeds and 15 reverse speeds.

What are the wheel and tyre specifications of the SAME Explorer 55?

The SAME Explorer 55 is equipped with front tyres sized 11.2-24 and back tyres sized 14.9-30.

How much is a SAME Explorer 55 4WD Tractor (1983u20131986) worth?

The residual value of the SAME Explorer 55 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
