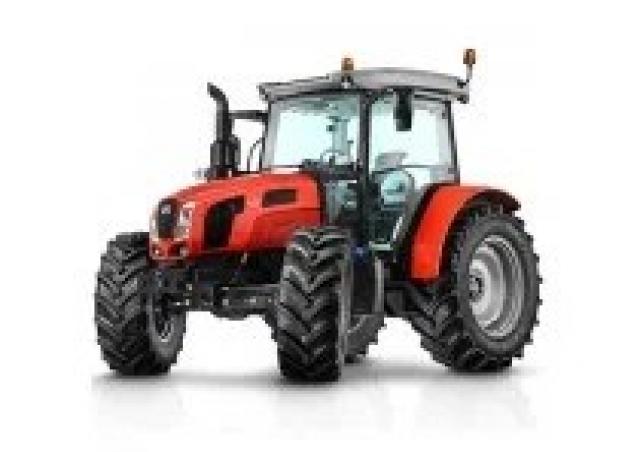

Explorer 105 TB SAME Explorer 105 TB Specifications & Technical Data (2019—2024)

The SAME Explorer 105 TB is a 4-wheel drive tractor manufactured since 2019. It has a weight of 4.2 tons and is powered by an engi…

The SAME Explorer 105 TB is a 4-wheel drive tractor manufactured since 2019. It has a weight of 4.2 tons and is powered by an engine with a capacity of 75 kW. The tractor has a transport length of 4.314 meters and can travel at a speed of 40 km/h. It has a transport width of 2.609 meters and a transport height of 1.882 meters. The tractor is equipped with 2 control units.

4WD Tractors SAME Explorer 105 TB

Technical specs - Explorer 105 TB SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
75 kW
Model series
Explorer
Back tyres
420/70 R24
Front tyres
300/70 R20
Transport length
4.314 m
Transport width
2.609 m
Transport height
1.882 m
Travel speed
40 km/h
Transmission
10/10
Transmission type
m
Weight
4.2 t
Control unit
2 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
III B (Tier 4 i)

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

SAME Explorer 105 TB FAQ

When was the SAME Explorer 105 TB first produced?

The SAME Explorer 105 TB was first produced in 2019.

What is the weight of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a weight of 4.2 tonnes.

What are the transport dimensions of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a transport length of 4.31 meters, a transport width of 2.61 meters, and a transport height of 1.88 meters.

What is the engine power of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has an engine power of 75 kW.

What is the travel speed of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a travel speed of 40 km/h.

What type of transmission does the SAME Explorer 105 TB have?

The SAME Explorer 105 TB is equipped with a mechanical transmission.

What type of steering does the SAME Explorer 105 TB have?

The SAME Explorer 105 TB is equipped with hydraulic steering.

What are the wheel and tyre specifications of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has front tyres sized 300/70 R20 and back tyres sized 420/70 R24.

How much is a SAME Explorer 105 TB 4WD Tractor (2019u20132025) worth?

The residual value of the SAME Explorer 105 TB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
