Explorer 105 TB SAME Explorer 105 TB Specifications & Technical Data (2017—2024)

The SAME Explorer 105 TB is a 4-wheel drive tractor manufactured by SAME since 2017. It has a weight of 4.2 tons and is powered by…

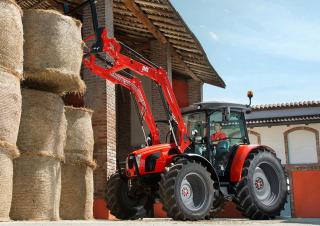

The SAME Explorer 105 TB is a 4-wheel drive tractor manufactured by SAME since 2017. It has a weight of 4.2 tons and is powered by an engine with a capacity of 78 kW. The tractor has a transport length of 4.314 meters and can travel at a speed of 40 km/h. It has a transport width of 2.609 meters and a transport height of 1.882 meters. The tractor is equipped with 2 control units.

4WD Tractors SAME Explorer 105 TB
4WD Tractors SAME Explorer 105 TB
4WD Tractors SAME Explorer 105 TB
4WD Tractors SAME Explorer 105 TB

Technical specs - Explorer 105 TB SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
78 kW
Model series
Explorer
Back tyres
420/70 R24
Front tyres
300/70 R20
Transport length
4.314 m
Transport width
2.609 m
Transport height
1.882 m
Travel speed
40 km/h
Transmission
20/20
Transmission type
m
Weight
4.2 t
Control unit
2 ew/dw
Steering
h
Engine manuf.
SDF
Engine type
1000.4 WTI
Displacement
4 l
Revolutions at max torque
2000 rpm
No. of cylinders
4
Emission level
III A

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Explorer 105 TB FAQ

When was the SAME Explorer 105 TB first produced?

The SAME Explorer 105 TB, part of the Explorer series, was first produced in 2017.

What is the weight of the SAME Explorer 105 TB?

The SAME Explorer 105 TB weighs 4.2 tonnes.

What are the physical dimensions of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a transport length of 4.31 meters, a transport width of 2.61 meters, and a transport height of 1.88 meters.

What is the engine power of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has an engine power of 78 kW.

What is the travel speed of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a travel speed of 40 km/h.

What are the drivetrain and transmission specifications of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has a mechanical transmission with 20 forward speeds and 20 reverse speeds.

What type of steering does the SAME Explorer 105 TB have?

The SAME Explorer 105 TB is equipped with hydraulic steering.

What are the wheel and tyre specifications of the SAME Explorer 105 TB?

The SAME Explorer 105 TB has front tyres sized 300/70 R20 and back tyres sized 420/70 R24.

How much is a SAME Explorer 105 TB 4WD Tractor (2017u20132025) worth?

The residual value of the SAME Explorer 105 TB depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
