SAME Explorer 105 Specifications & Technical Data (2020-2025)

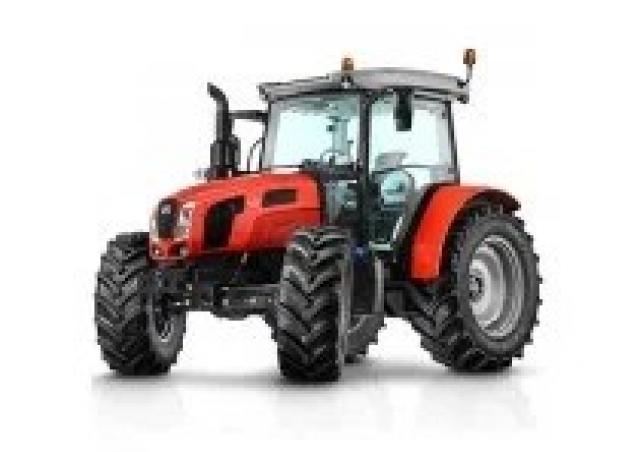

The SAME Explorer 105 is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 4.2 tons and is powered by an…

The SAME Explorer 105 is a 4-wheel drive tractor manufactured by SAME since 2020. It has a weight of 4.2 tons and is powered by an engine with a capacity of 75 kW. The tractor has a transport length of 4.426 meters and can travel at a speed of 40 km/h. It has a transport width of 2.273 meters and a transport height of 2.702 meters. The tractor is equipped with 2 control units and comes with special equipment such as a cabin.

Explorer 105

Years of manufacture: 2020—2025

Buy & Rent
Valuate & Sell
Spare parts
Transport
Events & News

Technical specs - Explorer 105 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 75 kW

Model series: Explorer

Back tyres: 16.9 R34

Front tyres: 14.9 R24

Transport length: 4.426 m

Transport width: 2.273 m

Transport height: 2.702 m

Travel speed: 40 km/h

Transmission: 40/40

Transmission type: m

Weight: 4.2 t

Control unit: 2 ew/dw

Steering: h

Engine manuf.: SDF

Engine type: 1000.4 WTI

Displacement: 4 l

Revolutions at max torque: 2300 rpm

No. of cylinders: 4

Emission level: III

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

FAQ

What is the weight of SAME Explorer 105?

The weight of SAME Explorer 105 is 4.2 tons.

What is the size of the SAME Explorer 105 4WD tractor?

The size of the SAME Explorer 105 4WD tractor is 2.27 meters in width, 2.7 meters in height, and 4.43 meters in length.

What engine does the SAME Explorer 105 4WD tractor have?

The SAME Explorer 105 4WD tractor has an SDF 1000.4 WTI engine with 102 kW power, 4-liter displacement, 2300 rpm at max torque, and 4 cylinders.
