Explorer³ 100 DT SAME Explorer³ 100 DT Specifications & Technical Data (2009—2012)

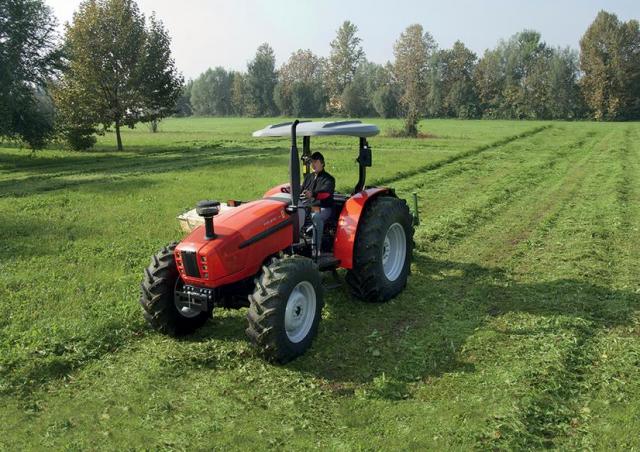

The SAME Explorer³ 100 DT is a 4 wheel drive tractor manufactured by SAME from 2009 to 2012. It has a weight of 4.28 tons and is e…

The SAME Explorer³ 100 DT is a 4 wheel drive tractor manufactured by SAME from 2009 to 2012. It has a weight of 4.28 tons and is equipped with a 73 kW engine. The tractor has a transport length of 3.95 meters and a travel speed of 41 km/h. It also has a transport width of 2.46 meters and a transport height of 2.64 meters. The special equipment included with this tractor is a cabin.

4WD Tractors SAME Explorer³ 100 DT

Technical specs - Explorer³ 100 DT SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
73 kW
Model series
Explorer
Back tyres
420/85 R 34
Front tyres
380/85 R 24
Transport length
3.95 m
Transport width
2.46 m
Transport height
2.64 m
Travel speed
41 km/h
Transmission
20/20
Weight
4.28 t
Control unit
-/3 ew/dw
Engine manuf.
Deutz
Engine type
TCD2012 L04 2V

More technical details, like: transmission type, steering, three point category, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Explorer³ 100 DT FAQ

When was the SAME Exploreru00b3 100 DT manufactured?

The SAME Exploreru00b3 100 DT was manufactured from 2009 to 2012.

What is the weight of the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has a weight of 4.28 tonnes.

What are the transport dimensions of the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has a transport length of 3.95 meters, a transport width of 2.46 meters, and a transport height of 2.64 meters.

What is the engine power of the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has an engine power of 73 kW.

What is the travel speed of the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has a travel speed of 41 km/h.

What are the transmission speeds for the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has a transmission with 20 forward speeds and 20 reverse speeds.

What are the wheel and tyre specifications of the SAME Exploreru00b3 100 DT?

The SAME Exploreru00b3 100 DT has front tyres sized 380/85 R 24 and back tyres sized 420/85 R 34.

How much is a SAME Exploreru00b3 100 DT 4WD Tractor (2009u20132012) worth?

The residual value of the SAME Exploreru00b3 100 DT depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
