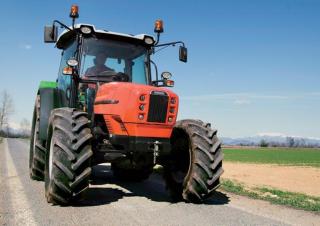

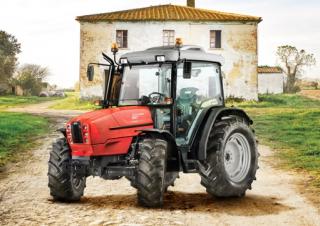

Dorado 90 Classic SAME Dorado 90 Classic Specifications & Technical Data (2015—2018)

The SAME Dorado 90 Classic is a 4 wheel drive tractor manufactured from 2015 to 2018. It has a weight of 3.41 tons and is equipped…

The SAME Dorado 90 Classic is a 4 wheel drive tractor manufactured from 2015 to 2018. It has a weight of 3.41 tons and is equipped with a 65 kW engine. The tractor has a transport length of 3.06 meters and a travel speed of 40 km/h. It has a transport width of 1.64 meters and a transport height of 2.27 meters. The tractor is also equipped with a cabin for the operator.

Dorado 90 Classic

Years of manufacture: 2015—2018

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - Dorado 90 Classic SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power: 65 kW

Model series: Dorado

Back tyres: 420/70 R30

Front tyres: 320/70 R20

Transport length: 3.06 m

Transport width: 1.64 m

Transport height: 2.27 m

Travel speed: 40 km/h

Transmission: 10/10

Transmission type: m

Weight: 3.41 t

Control unit: -/2 ew/dw

Steering: h

three point category: 2

Engine manuf.: SDF

Engine type: FARMotion

Displacement: 2.887 l

Revolutions at max torque: 2200 rpm

No. of cylinders: 3

Emission level: Tier 4 i

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin: Yes
Front hydraulics: No
Front PTO: No
Air brakes: No
ISO Bus: No
Aircondition: No

Download datasheets (PDF)

SAME Dorado 90 Classic FAQ

When was the SAME Dorado 90 Classic manufactured?

The SAME Dorado 90 Classic was manufactured from 2015 to 2018.

What is the weight of the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic weighs 3.41 tonnes.

What are the physical dimensions of the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic has a transport length of 3.06 meters, a transport width of 1.64 meters, and a transport height of 2.27 meters.

What is the engine power of the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic has an engine power of 65 kW.

What is the travel speed of the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic has a travel speed of 40 km/h.

What type of transmission does the SAME Dorado 90 Classic have?

The SAME Dorado 90 Classic is equipped with a mechanical transmission.

What type of steering does the SAME Dorado 90 Classic have?

The SAME Dorado 90 Classic is equipped with hydraulic steering.

What are the wheel and tyre specifications for the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic has front tyres sized 320/70 R20 and back tyres sized 420/70 R30.

What is the three-point hitch category of the SAME Dorado 90 Classic?

The SAME Dorado 90 Classic has a category 2 three-point hitch.

How much is a SAME Dorado 90 Classic 4WD Tractor (2015u20132018) worth?

The residual value of the SAME Dorado 90 Classic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
