Dorado 90.4 SAME Dorado 90.4 Specifications & Technical Data (2015—2019)

The SAME Dorado 90.4 is a 4 wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.3 tons and is equippe…

The SAME Dorado 90.4 is a 4 wheel drive tractor manufactured by SAME from 2015 to 2019. It has a weight of 3.3 tons and is equipped with a 65 kW engine. The tractor has a transport length of 4.257 meters and a travel speed of 40 km/h. It has a transport width of 2.18 meters and a transport height of 2.59 meters. The special equipment included with this tractor is a cabin.

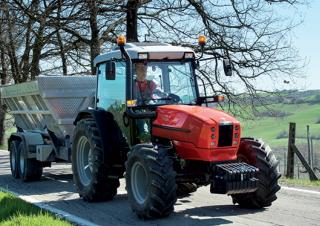

4WD Tractors SAME Dorado 90.4
4WD Tractors SAME Dorado 90.4
4WD Tractors SAME Dorado 90.4
4WD Tractors SAME Dorado 90.4
4WD Tractors SAME Dorado 90.4
4WD Tractors SAME Dorado 90.4

Technical specs - Dorado 90.4 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
Dorado
Back tyres
480/70 R30
Front tyres
320/70 R24
Transport length
4.257 m
Transport width
2.18 m
Transport height
2.59 m
Travel speed
40 km/h
Transmission
30/15
Transmission type
m
Weight
3.3 t
Control unit
-/3 ew/dw
Steering
h
three point category
2
Engine manuf.
SDF
Engine type
FARMotion
Displacement
3.849 l
Revolutions at max torque
2200 rpm
No. of cylinders
4
Emission level
III B (Tier 4 i)

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Dorado 90.4 FAQ

When was the SAME Dorado 90.4 manufactured?

The SAME Dorado 90.4, part of the Dorado series, was produced from 2015 to 2019.

What is the weight of the SAME Dorado 90.4?

The SAME Dorado 90.4 has a weight of 3.3 tonnes.

What are the physical dimensions of the SAME Dorado 90.4 tractor?

The SAME Dorado 90.4 tractor has a transport length of 4.26 meters, a transport width of 2.18 meters, and a transport height of 2.59 meters.

What is the engine power of the SAME Dorado 90.4?

The SAME Dorado 90.4 has an engine power of 65 kW.

What is the travel speed of the SAME Dorado 90.4?

The SAME Dorado 90.4 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Dorado 90.4?

The SAME Dorado 90.4 has a mechanical transmission with 30 forward speeds and 15 reverse speeds.

What type of steering does the SAME Dorado 90.4 have?

The SAME Dorado 90.4 has hydraulic steering.

What are the wheel and tyre specifications for the SAME Dorado 90.4?

The SAME Dorado 90.4 has back tyres sized 480/70 R30 and front tyres sized 320/70 R24.

What is the three-point hitch category of the SAME Dorado 90.4?

The SAME Dorado 90.4 has a category 2 three-point hitch.

How much is a SAME Dorado 90.4 4WD Tractor (2015u20132019) worth?

The residual value of the SAME Dorado 90.4 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
