Dorado 80 SAME Dorado 80 Specifications & Technical Data (2019—2024)

The SAME Dorado 80 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.2 tons and is powered by an en…

The SAME Dorado 80 is a 4 wheel drive tractor manufactured by SAME since 2019. It has a weight of 3.2 tons and is powered by an engine with a power output of 55.4 kW. The tractor has a transport length of 3.997 meters and can travel at a speed of 40 km/h. It has a transport width of 2.18 meters and a transport height of 2.59 meters. The tractor is equipped with a cabin as special equipment.

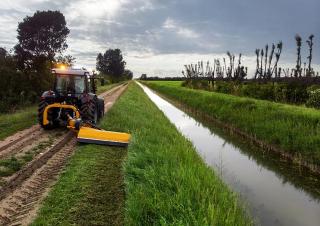

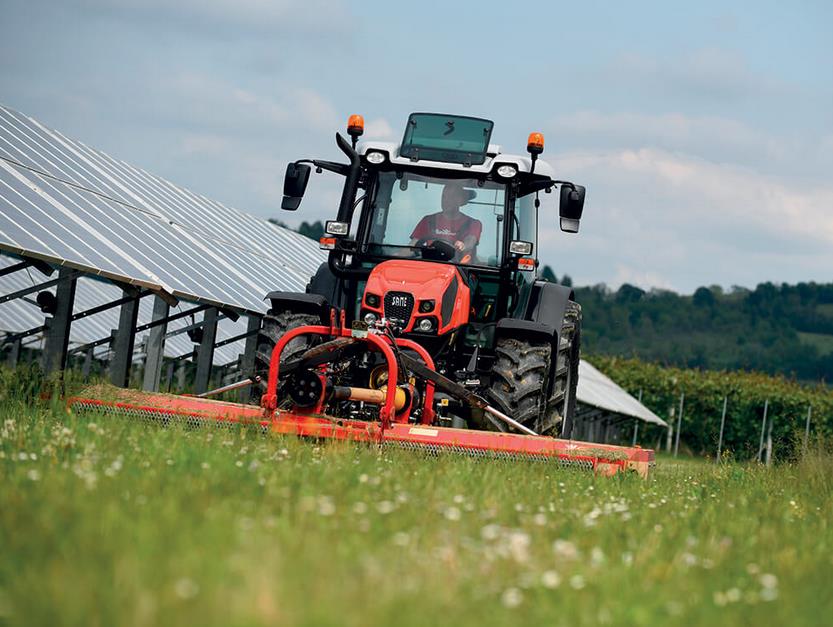

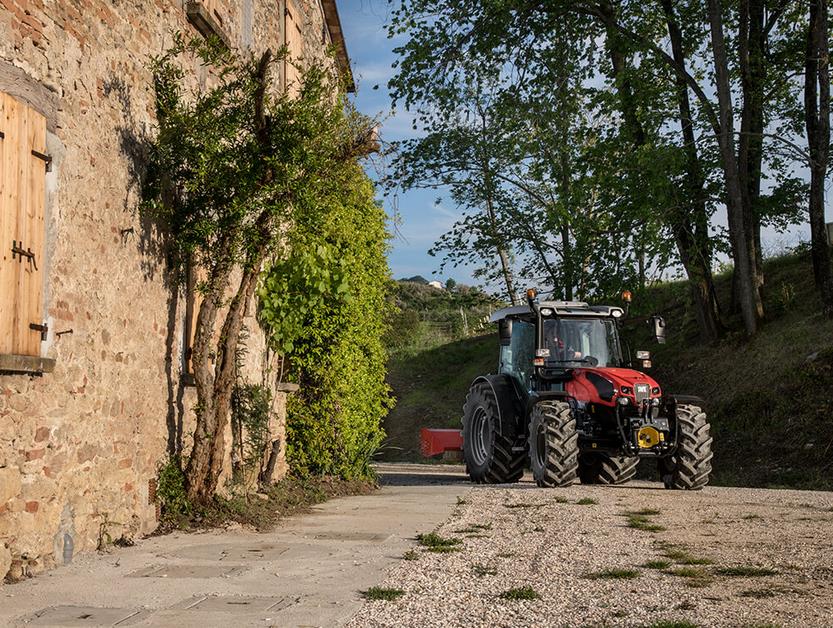

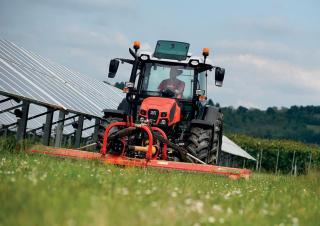

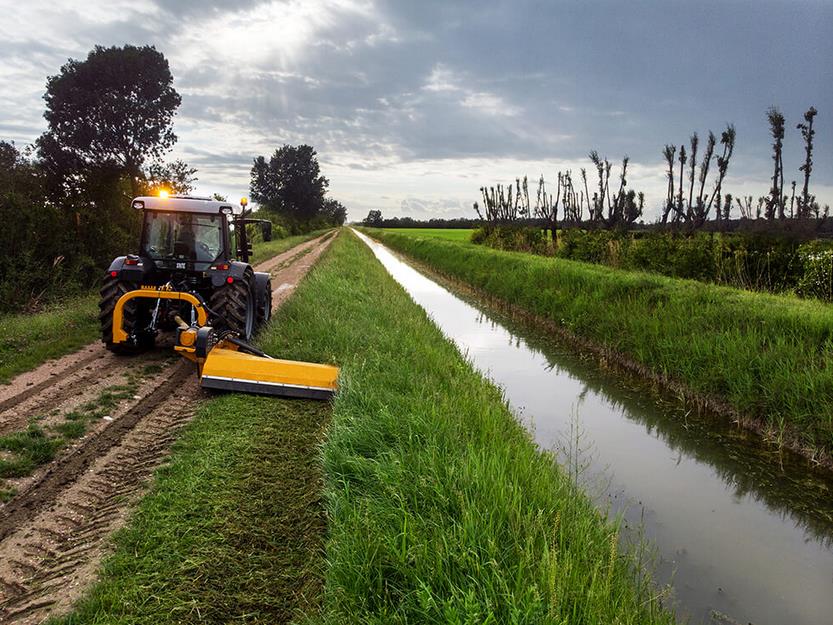

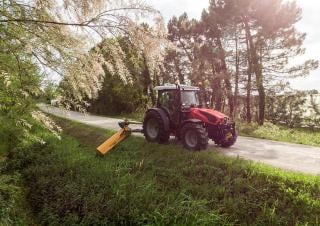

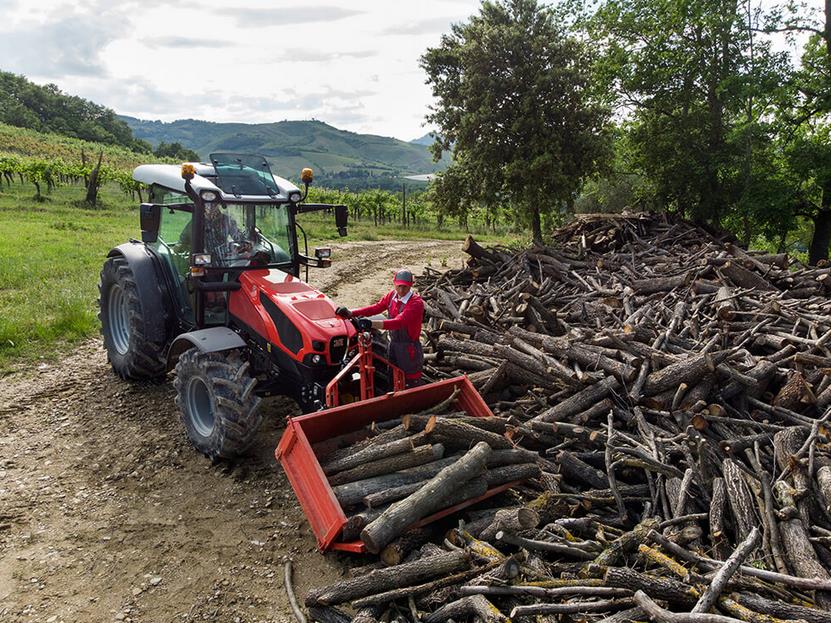

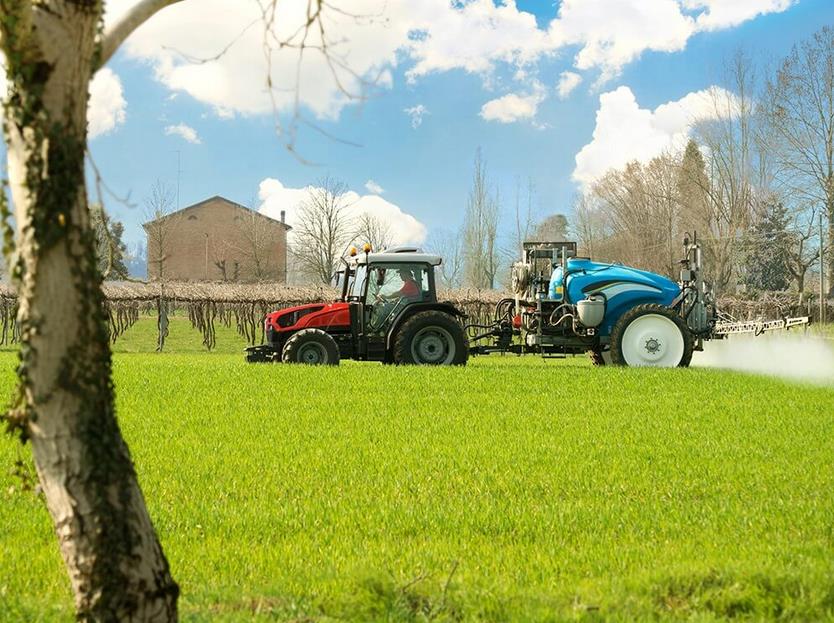

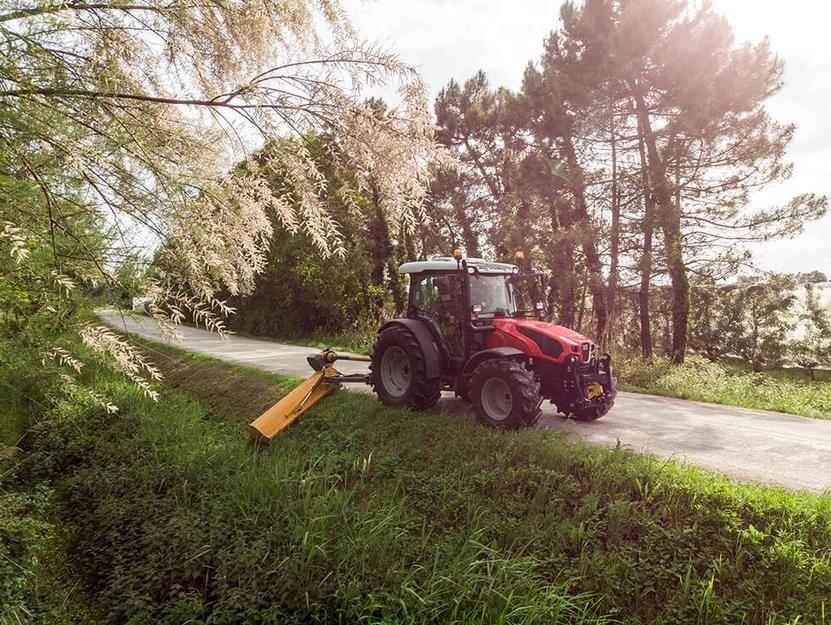

4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80
4WD Tractors SAME Dorado 80

Technical specs - Dorado 80 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
55.4 kW
Model series
Dorado
Back tyres
420/70 R30
Front tyres
360/70 R20
Transport length
3.997 m
Transport width
2.18 m
Transport height
2.59 m
Travel speed
40 km/h
Transmission
45/45
Transmission type
m
Weight
3.2 t
Control unit
-/3 ew/dw
Steering
h
three point category
2
Engine manuf.
SDF
Engine type
FARMotion
Displacement
2.887 l
Revolutions at max torque
2000 rpm
No. of cylinders
3
Emission level
III B (Tier 4 i)

More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Dorado 80 FAQ

When was the SAME Dorado 80 manufactured?

The SAME Dorado 80 was first produced in 2019.

What is the weight of the SAME Dorado 80?

The SAME Dorado 80 weighs 3.2 tonnes.

What are the physical transport dimensions of the SAME Dorado 80?

The SAME Dorado 80 has a transport length of 4 meters, a transport width of 2.18 meters, and a transport height of 2.59 meters.

What is the engine power of the SAME Dorado 80?

The SAME Dorado 80 has an engine power of 55.4 kW.

What is the travel speed of the SAME Dorado 80?

The SAME Dorado 80 has a travel speed of 40 km/h.

What are the drivetrain and propulsion system specifications of the SAME Dorado 80?

The SAME Dorado 80 has a mechanical transmission with 45 forward speeds and 45 reverse speeds.

What type of steering does the SAME Dorado 80 have?

The SAME Dorado 80 is equipped with hydraulic steering.

What are the wheel and tyre specifications of the SAME Dorado 80?

The SAME Dorado 80 has front tyres sized 360/70 R20 and back tyres sized 420/70 R30.

What is the three-point hitch category of the SAME Dorado 80?

The SAME Dorado 80 has a category 2 three-point hitch.

How much is a SAME Dorado 80 4WD Tractor (2019u20132025) worth?

The residual value of the SAME Dorado 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
