Argon 90 SAME Argon 90 Specifications & Technical Data (2018—2023)

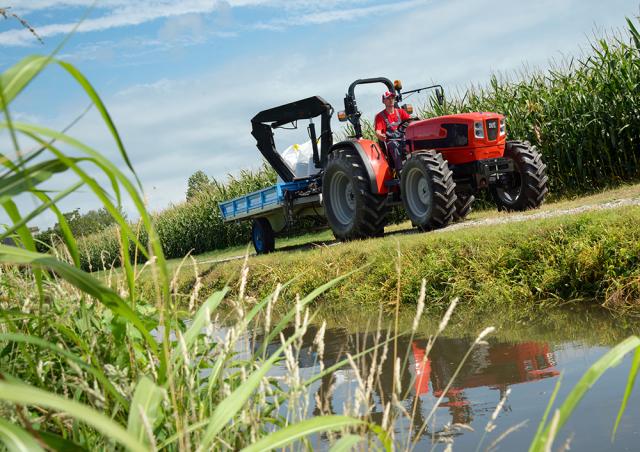

The SAME Argon 90 is a 4 wheel drive tractor manufactured by SAME since 2018. It has a weight of 3 tons and is powered by an engin…

The SAME Argon 90 is a 4 wheel drive tractor manufactured by SAME since 2018. It has a weight of 3 tons and is powered by an engine with a power output of 65 kW. The tractor has a transport length of 3.86 meters and can travel at a speed of 40 km/h. It has a transport width of 1.782 meters and a transport height of 2.473 meters.

4WD Tractors SAME Argon 90
4WD Tractors SAME Argon 90
4WD Tractors SAME Argon 90
4WD Tractors SAME Argon 90

Technical specs - Argon 90 SAME

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
65 kW
Model series
Argon
Back tyres
380/85 R30
Front tyres
320/85 R20
Transport length
3.86 m
Transport width
1.782 m
Transport height
2.473 m
Travel speed
40 km/h
Transmission
15/15
Transmission type
m
Weight
3 t
Control unit
2/- ew/dw
Steering
h
Engine manuf.
SDF
Engine type
FARMotion
Displacement
2.887 l
Revolutions at max torque
2200 rpm
No. of cylinders
3
Emission level
Tier 4 i

More technical details, like: three point category, dimension lxwxh, max. torque, cylinder bore x stroke are available in the full technical specs.

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
No
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
No

Download datasheets (PDF)

SAME Argon 90 FAQ

When was the SAME Argon 90 first produced?

The SAME Argon 90 was first produced in 2018.

What is the weight of the SAME Argon 90 tractor?

The SAME Argon 90 tractor has a weight of 3 tonnes.

What are the physical dimensions of the SAME Argon 90 tractor?

The SAME Argon 90 tractor has a transport length of 3.86 meters, a transport width of 1.78 meters, and a transport height of 2.47 meters.

What is the engine power of the SAME Argon 90?

The SAME Argon 90 has an engine power of 65 kW.

What is the travel speed of the SAME Argon 90?

The SAME Argon 90 has a travel speed of 40 km/h.

What are the drivetrain and transmission specifications of the SAME Argon 90?

The SAME Argon 90 has a mechanical transmission with 15 forward speeds and 15 reverse speeds.

What type of steering does the SAME Argon 90 have?

The SAME Argon 90 has hydraulic steering.

What are the wheel and tyre specifications of the SAME Argon 90?

The SAME Argon 90 has front tyres sized 320/85 R20 and back tyres sized 380/85 R30.

How much is a SAME Argon 90 4WD Tractor (2018u20132025) worth?

The residual value of the SAME Argon 90 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.

SAME Argon 90 overview

Engine & Transmission

A high-tech, compact ENGINE compliant with the latest emissions control regulations

The beating heart of the new SAME Argon range is the innovative 3 cylinder FARMotion engine. The compact size of this engine accentuates the inherently outstanding agility of these machines without sacrificing performance. The viscostatic fan, turbo-intercooler forced induction and, above all, the common rail injection system with injection pressures up to 2,000 bar contribute to the class-beating fuel economy of these tractors. The avant-garde FARMotion engine achieves compliance with Stage III B emissions regulations with just a DOC catalytic converter, while offering torque and power delivery tailored specifically for farming applications.


Axle

Powerful BRAKES with a dedicated brake line for working in complete safety with any trailer

There are important innovations also for the braking system: as an option, these tractors may be equipped with a dedicated hydraulic trailer braking line which already meets the requirements of the latest safety directives. The electronic management system also includes an additional mode for controlling the dedicated trailer line. 2WD versions are equipped with multiple wet disc brakes on the rear axle, while 4WD versions feature brakes on all four wheels.
