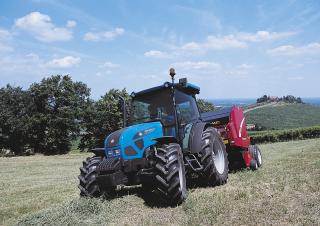

Alpine 85 STD Landini Alpine 85 STD Specifications & Technical Data (2008—2014)

New Yanmar series engines for superior performance

All models are equipped with the new “Tier3” Yanmar 4TNv98 series aspirated and turbocharged engines. With a total displacement of 202 cu. in. (3319 cm³) and powers of 69.5, 76 and 81 hp (ISO), the new engines deliver superior performance in terms of horsepower, torque and torque backup. The forward tilting hood provides easy access to the engine for routine service and maintenance.

Power Five transmission: electronics makes the difference

The Power Shuttle transmission includes Speed Five base transmission, Creeper, Power Five transmission (HI-LO splitter gear with electrohydraulic engagement for 20% speed reduction) and Reverse Power Shuttle (hydraulic reverse shuttle with lever integrated in the steering column) providing a total of 60FWD + 60REV speeds. Combining the Declutch Control (orange pushbutton integrated in the gear lever for electrohydraulic engagement of the transmission clutch) with the Reverse Power Shuttle, this type of transmission allows engaging and reversing all gears without using the clutch pedal.

Hydra P.T.O.: pto with multi-disc clutch and electrohydraulic engagement

The PTO provides two speeds - 540/750 rpm (standard) and 540/1000 rpm (optional) plus a ground speed for the use of trailers. A multi-disc wet clutch operated by an electrohydraulic pushbutton integrated on the console placed on the driver's right enables smooth and progressive engagement of the PTO.

Front power lift and PTO (optional) for enhanced versatility

The Cat. 2 front power lift ensures a maximum lifting capacity of 1980 lb. (900 kg) and provides rising/lowering and floating position control functions. The PTO with button-operated electrohydraulic engagement offers a speed of 1000 rpm. The front lift and PTO have been specifically designed to be integrated in this tractor range for enhanced versatility.

Hydraulics designed for maximum versatility

The Alpine tractor features an extremely versatile hydraulic system consisting of two separate circuits. One circuit depends on a pump with a delivery of 7,2 GPM (27.5 L/min) to operate the steering system and all electrohydraulic functions for control of transmission. The other circuit provides oil for the lift system and the rear auxiliary valves and is powered by a pump delivering 15 GPM (57 L/min). A choice of four auxiliary valves is available on request to suit different application needs: simple-acting valves for dump trailers, double-acting valves for reversible plows and valves with a floating position allowing work implements to follow the ground profile.

New Landtronic power lift for improved workrates and accuracy of operation

The tractor can be optionally equipped with the electronically-controlled Landtronic power lift. The main controls of the Landtronic, arranged in ergonomic and logical position on the console located on the driver's right, provide all main functions: draft and position control, intermix, float position, link lowering speed control, sensitivity control. The electronic system of the Landtronic with sensors located on the three-point linkage, offers fingertip control of implements and increased workrates, ensuring improved draft and smoother tractor operation for enhanced efficiency and productivity. The Cat. II three-point linkage with two auxiliary cylinders is extremely rugged and equipped with quick-couplings to provide a maximum lifting capacity of 7480 lb. (3400 kg).

Total View cab for all-round visibility

The most outstanding feature of the Alpine tractor is the all-round visibility of the Total View cab provided by the all-glass side doors hinged onto the rear post. The interiors, stylish and accurately finished, are largely made using the modern composite materials of automotive design. All controls are arranged in a comfortable and intuitive position, according to current ergonomic standards. The adjustable seat, the new digital instrument panel and the steering wheel adjustable in height and inclination further improve the driving comfort. The heating/ventilation and air-conditioning system is installed on the cab roof with considerable benefits for the driver in terms of comfort, safety and health. The ventilation system is integrated by two filters designed to purify the air inside the cab. If the operator is required to work in a pesticide-contaminated environment, the cab can be provided with activated-carbon filters, available on request. The roof features a fixed clear sunroof, particularly useful when working with front loaders, and four lights for night work. Natural ventilation is ensured by the openable front and rear windscreens.

Alpine Series Tractors

The Alpine series completes the new Landini tractor range with a powerful, lightweight and versatile tractor designed to meet the demand for high productivity in the low-power range (69.5 to 81 HP ISO). The Alpine series comes in two versions - Standard and GT - and in a choice of 4 four-wheel drive models - 70, 80 and 85. The Alpine STD version features drop-down final drives and a specially-built 4WD front axle with an integral braking system, allowing the use of large-diameter rear tyres of up to 36”. These features make the Alpine STD tractor ideally suited for soil preparation activities, such as plowing, tillage, and harrowing, as well as for forage harvesting where the tractor's manoeuvrability comes in handy. Thanks to its versatile transmission designed to provide a maximum speed of 25 mph (40 kph), the Alpine STD is equally at home on the road. The Alpine GT version features a 4WD front axle with an integral braking system and straight epicyclic final drives, which make this tractor narrower and lower by about 2.36 in. (60 mm) than the Standard model, thus improving the centre of gravity for increased stability.

With the “Fast-Run” system and a 60° steering angle manoeuvring is great fun

The innovative four-wheel drive front axles allow a steering angle of 60° for maximum manoeuvrability. To improve headland manoeuvring, especially when working between rows, Landini has adopted a unique system named FAST-RUN (standard on GT model), featuring a wet multi-disc dual clutch. One clutch is used to engage the four-wheel drive, whilst the other allows the turning speed of the front wheels to be increased by 78% when the steering angle exceeds 35°. This decreases the steering time by 30% while reducing the turning radius for better manoeuvrability and enhanced productivity.
