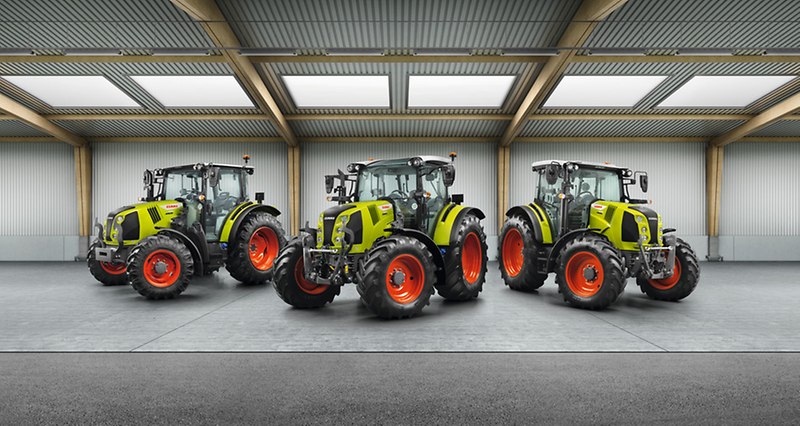

Arion 420 Basic Claas Arion 420 Basic Specifications & Technical Data (2022—2024)

The Claas Arion 420 Basic is a 4-wheel drive tractor manufactured by Claas since 2022. It has a weight of 4.9 tons and is powered …

The Claas Arion 420 Basic is a 4-wheel drive tractor manufactured by Claas since 2022. It has a weight of 4.9 tons and is powered by an engine with a power output of 75 kW. The tractor has a transport length of 4.44 meters and can travel at a speed of 40 km/h. It has a transport height of 2.74 meters and is equipped with a cabin and an ISO Bus.

4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic
4WD Tractors Claas Arion 420 Basic

Technical specs - Arion 420 Basic Claas

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
75 kW
Model series
Arion
Back tyres
420/85 R38
Front tyres
380/70 R28
Transport length
4.44 m
Transport height
2.74 m
Travel speed
40 km/h
Transmission
16/16
Transmission type
LS
Weight
4.9 t
Control unit
-/2 ew/dw
three point category
3
Engine manuf.
FPT
Engine type
NEF 4
Displacement
4.485 l
Revolutions at max torque
2000 rpm
Max. torque
434 Nm
No. of cylinders
4
Emission level
V

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
Yes
Aircondition
No

Claas Arion 420 Basic FAQ

When was the Claas Arion 420 Basic manufactured?

The Claas Arion 420 Basic was manufactured from 2022 to 2024 as part of the Arion series.

What is the weight of the Claas Arion 420 Basic?

The Claas Arion 420 Basic has a weight of 4.9 tonnes.

What are the transport dimensions of the Claas Arion 420 Basic?

The Claas Arion 420 Basic has a transport length of 4.44 meters and a transport height of 2.74 meters.

What is the engine power of the Claas Arion 420 Basic?

The Claas Arion 420 Basic has an engine power of 75 kW.

What is the travel speed of the Claas Arion 420 Basic?

The Claas Arion 420 Basic has a travel speed of 40 km/h.

What type of transmission and how many speeds does the Claas Arion 420 Basic have?

The Claas Arion 420 Basic has a powershift transmission with 16 forward speeds and 16 reverse speeds.

What are the wheel and tyre specifications for the Claas Arion 420 Basic?

The Claas Arion 420 Basic has back tyres sized 420/85 R38 and front tyres sized 380/70 R28.

What is the three-point hitch category of the Claas Arion 420 Basic?

The Claas Arion 420 Basic has a category 3 three-point hitch.

How much is a Claas Arion 420 Basic 4WD Tractor (2022u20132024) worth?

The residual value of the Claas Arion 420 Basic depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
