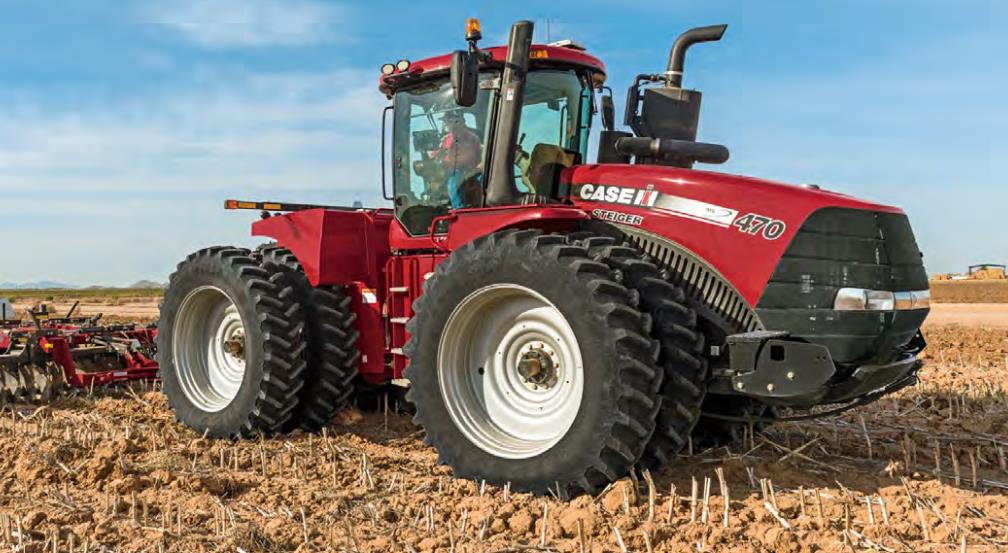

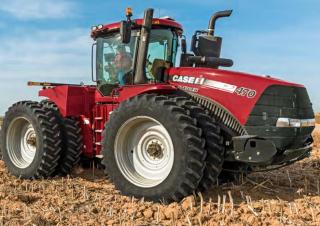

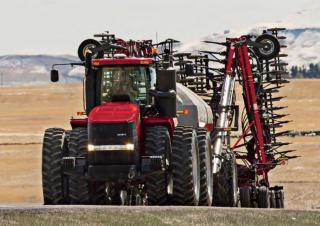

Steiger 470 Case IH Steiger 470 Specifications & Technical Data (2014—2018)

The Proof is in the Finish.

Upgraded paint quality — Class 6 automotive-grade paint provides 50 percent longer life and less fading, increasing your resale value.

Efficient steiger power tackles serious earthmoving.

A Steiger tractor-scraper combination efficiently handles large-scale dirt work with outstanding fuel economy. The scraper tractor configuration’s rugged chassis has the durability needed for heavy loads and responsive hydraulics for the cycle times you demand. Eight Steiger scraper models allow you to match tractor power to your scraper system with the choice of either the efficient CVXDrive continuously variable transmission or powerful PowerDrive powershift transmission. The industry’s first 4-point suspended cab gives you a smoother ride all day long.

Efficient magnum power adds versatility to your job site.

With Case IH Magnum series tractor power, you can count on increased productivity in your land leveling and commercial scraper operations. A Magnum tractor is designed to efficiently pull scrapers at speeds above 4 mph, with industry-leading power growth, up to 14 percent, for unmatched performance in tough pulls. Plus a suspended cab and suspended front axle make your long, rocky day a lot more comfortable.

A Fuel Tank That Lasts as Long as the Tractor.

With up to a 470-gallon fuel tank, Steiger tractors have enough fuel capacity to operate a minimum of 15 hours on a single tank. The structural steel fuel tank is built right into the frame, adding extra strength and durability to the chassis.

A Choice in Transmissions to Get the Most from Your Work.

The proven Case IH PowerDrive transmission and new CVXDrive transmission will perform in any application, but choosing the one that best fits your operation can lead to even greater precision and productivity from your Case IH tractor.

Powerdrive transmission.

The world record setting PowerDrive offers reliably smooth shifting and reduces operator fatigue, along with Diesel Saver Automatic Productivity Management (APM) to save fuel.

The high-efficiency powerdrive.

The rugged Case IH PowerDrive transmission is standard on all Steiger tractors. The 2017 Nebraska Tractor Test Laboratory proved the Steiger 620 tractor, featuring a PowerDrive transmission, generated the most fluid-efficient horsepower and maximum pull in the world.

Cvxdrive: giving you more control over the most efficient power available.

CVXDrive represents the highest-horsepower continuously variable transmission in the industry — 605 peak horsepower on Steiger 540-hp models. The CVXDrive operates like an automatic transmission and provides all new opportunities for your business or line of work. Once the speed is set, the operator is free to focus on the application for improved performance. Additionally, CVXDrive provides steady speed change to maintain full power to the ground at speeds as low as 3 feet per minute.

New transmission. same dependable steiger frame.

The CVXDrive is not just a new transmission; it’s an intelligent automatic transmission designed specifically for the rugged Steiger frame and paired with advanced controls and technology found in Steiger, Magnum, Optum, Puma and Maxxum continuously variable transmission tractors. Features include Tri-Point Oscillation, a structural steel fuel tank, up to 5.5 inch heavy bar axles, and availability in Quadtrac and wheeled versions. All models come standard with auto differential lock.

Advantages of choosing the cvxdrive.

Precise speed changes: 3 feet per minute up to 25 mph. Seamless acceleration: three times faster for maximum comfort and speed changes on the go — without stopping and breaking power to the ground. Continuous hydraulic flow: greater precision and control over inputs. Faster shuttling: seamless forward and reverse movement increases productivity and efficiency. At any speed, in either direction, the engine always delivers full power to the ground. Fuel efficiency: CVXDrive automatically balances power and efficiency, reducing fuel consumption in applications that require frequent roading, shifting or shuttling.

Built to Work in the Dirt.

Construction managers now know what farmers have known for decades: Case IH Steiger and Magnum tractors have the efficient power you need to get the job done — from site prep to land leveling to general earthmoving.

The Right Horsepower for Your Operation.

The Steiger 620 delivers 10 percent power growth for 682 peak horsepower to handle the largest scrapers and heaviest loads. It has a two-stage turbocharger system: a small turbocharger provides responsiveness and a second, larger one offers maximum boost at high rpm.

Big Tractors for the Biggest Construction Jobs.

All Steiger tractors feature massive, heavy-duty axles that can carry up to 66,000 pounds of operating weight. That’s the most weight any tractor in its class can handle. When you factor in heavy-duty drawbars, a built-in ½ inch thick structural frame and fuel tank, along with rugged transmission options, you’ll see why Steiger tractors really are a big deal.

Steiger Strong.

The longer wheelbase and built-in weight of a heavy frame on Steiger 470 tractors provide more power to the ground, plus the heft and durability needed for earthmoving. The wide frame of 500, 540, 580 and 620 wheeled models set new productivity benchmarks for the industry. Features like heavy-duty drivetrain components, available 113-gallon-per-minute hydraulic flow, and power growth up to 682 peak horsepower have raised the bar as well.

More Power. More Durability. More Profit.

Steiger scraper tractors come with four standard hydraulic remotes, with the option to add four more. A quick-attach heavy-duty scraper drawbar is designed specifically for scraper demands.

Reliable Performance, Day In and Day Out.

When you’re on the job, uptime is the bottom line. You have to keep moving, and so does your equipment. Rugged frames, durable drivetrain, and powerful, fuel-efficient engines are the keys to durability and productivity.

Unlimited possibilities, maximum versatility: magnum 180–240 tractors.

Get the maximum benefit from your Magnum 180 to 220 with the standard 19-speed PowerDrive powershift transmission (Magnum 240 CVXDrive only). Magnum 180 to 240 tractors can be configured for use with front duals and are a perfect match for smaller scrapers.

Power for more loads in a day: magnum 250–380 tractors.

Magnum 250 to 380 tractors have the power to take on the toughest tasks. They can handle hard-pulling applications with 250 to 380 engine horsepower, up to 14 percent power growth. More built-in ballast improves traction, enhancing your tractive effort to fill the largest scrapers and effectively placing your tractor's horsepower to the ground.

Smooth power to the ground – high-horsepower magnum cvxdrive option.

Experience the proven performance of the Case IH CVXDrive that performs like an automatic transmission. The CVXDrive uses Case IH current technology to deliver uninterrupted power to the ground. A four-range design efficiently delivers more power for tough jobs, and the Case IH CVXDrive automatically adjusts to match ground speed to any job-site conditions.

Easy-to-use controls — set it and forget it.

The CVXDrive automatically selects the most efficient transmission range once the operator sets the desired speed, eliminating the need for using the clutch and shifting. With the click of a button, easily switch between three exclusive preset speeds. Features familiar controls, including the integrated split-throttle on the MultiControl Armrest found in Magnum, Optum, Puma and Maxxum CVXDrive tractors. In addition to the MultiFunction Handle, an accelerator pedal controls the tractor, delivering greater control when hooking up implements, packing/pushing loose material, loading and more. Active stop holds the tractor stationary on any terrain, making it easier to start and stop on inclines without using the clutch and brake.

Cab Suspension for a Smoother Ride

Case IH cab suspension systems stabilize cab motion to give the operator a smooth ride — regardless of terrain. Standard on Steiger Quadtrac and wheeled models, and optional on Magnum wheeled models, the system reduces jarring and bouncing to give you greater focus on the job and more control over your tractor. In addition, Steiger scraper tractors come standard with falling object protection (FOPS) and roll-over protection (ROPS).

Cruise Through Long Days in the Industry's First Suspended Cab

Exclusive 4-point cab suspension stabilizes front-to-back, side-to-side and up-and-down motions.Enjoy a smooth ride regardless of terrain with shock-absorbing components at each corner of the cab.A combination of springs, dampers and mounts fully isolate the cab from chassis-created vibrations.The fully suspended four-post cab suspension system eliminates repeated jarring and bouncing.

Built Specifically for Land Shaping

Case IH scraper tractors come standard with lots of features that have big benefits for earthmoving and land leveling. A seat that swivels 40 degrees to the right for unmatched visibility of your attachment.Automatic differential locks.Backup alarm.Tow cable.20,000-lb. scraper drawbar.Antivandalism lockdown package.Specifically designed with roll over protection/falling object protection structure (ROP/FOPS) certified to 66,000 lb.

Hard Work Shouldn’t Be a Pain in the Neck

Autoguidance systems give you more freedom in the cab to look back and check on implement operations. So your tractor’s seat shouldn’t force you to keep looking forward. The Case IH industry-leading 40-degree, right-hand swivel seat in Steiger tractors gives you an exclusive 360-degree full field of vision that keeps you from having to strain your neck all day. The cab, radio and HVAC controls are on the upper right, too, so everything is within easy reach.

Easy Maintenance Tracks

Today’s Case IH Steiger Quadtrac tractors also have an undercarriage that is maintenance-free with clear caps and sight gauges.

Full Power in Turns

Unlike two-track systems that vary power to each track during turns, Quadtrac tractors keep full power in turns under load. No additional power is required to turn. The articulated steering of a Steiger Quadtrac operates like a typical 4WD wheeled tractor, preventing ridging and berming.

Tri-Point Oscillation

Tri-point Oscillation provides the perfect mix of strength and balance when transferring power to the ground and it's engineered into every Steiger tractor. The steering cylinders are mounted low, and in direct line to the torsional stresses placed on the tractor. The large top link that extends from the front frame to the rear frame transfers dynamic loads efficiently.
