    Lectura specs Agricultural machinery 4WD Tractors 4WD Tractors Case IH Case IH Quantum 110 V specifications

    Technical specs - Quantum 110 V Case IH

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Engine power 79 kW
    Back tyres 320/85 R24 A8
    Front tyres 240/70 R16 A8
    Transport width 1.18 m
    Transport height 2.38 m
    Travel speed 40 km/h
    Transmission 16/16
    Transmission type m
    Weight 2.666 t
    Control unit -/4 ew/dw
    Steering h
    three point category 2
    Engine manuf. FPT
    Engine type F 5 C
    Displacement 3.4 l
    Revolutions at max torque 2300 rpm
    No. of cylinders 4
    Emission level Stufe III b/Tier 4 a

    is a 0 for the size specification so that means, that no information is available.

    Quantum 110 V Case IH - Special equipment

    • Cabin
    • Front hydraulics
    • Front PTO
    • Air brakes
    • ISO Bus
    • Aircondition

    Download data sheets - Case IH Quantum 110 V


    What do you think about this machine?

    Compare Case IH Quantum 110 V with other models

    Press 1 image

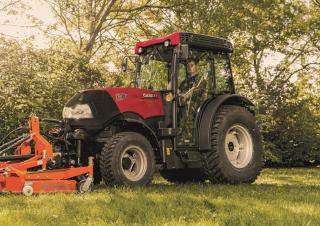

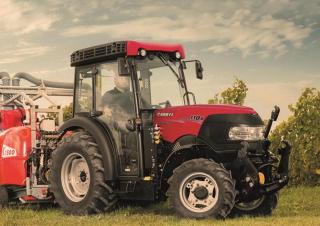

    Case IH Quantum 110 V


    320/85 R24 A8

    240/70 R16 A8
