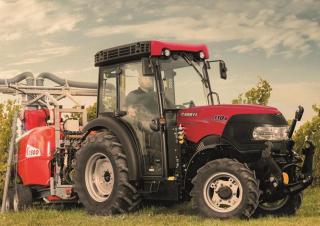

Quantum 110 CL Case IH Quantum 110 CL Specifications & Technical Data (2023—2026)

Engine power: 81kW – Model series: Quantum – Back tyres: 420/70 R28 – Front tyres: 280/70 R20 – Transport length: 4.18m – Transport width: 1.902m

4WD Tractors Case IH Quantum 110 CL

Technical specs - Quantum 110 CL Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
81 kW
Model series
Quantum
Back tyres
420/70 R28
Front tyres
280/70 R20
Transport length
4.18 m
Transport width
1.902 m
Transport height
2.55 m
Travel speed
40 km/h
Transmission
32/16
Weight
3.15 t
Control unit
2 ew/dw
Steering
h
Engine manuf.
FPT
Engine type
F36
Displacement
3.6 l
Revolutions at max torque
2300 rpm
Max. torque
490/1300 Nm
No. of cylinders
4
Emission level
V

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
No
Aircondition
Yes

Case IH Quantum 110 CL FAQ

When did production of the Case IH Quantum 110 CL begin?

Production of the Case IH Quantum 110 CL, part of the Quantum series, began in 2023.

What is the weight of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a weight of 3.15 tonnes.

What are the physical dimensions of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a transport length of 4.18 meters, a transport width of 1.902 meters, and a transport height of 2.55 meters.

What is the engine power of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has an engine power of 81 kW.

What is the travel speed of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a travel speed of 40 km/h.

What are the transmission speeds for the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has a transmission with 32 forward speeds and 16 reverse speeds.

What type of steering does the Case IH Quantum 110 CL have?

The Case IH Quantum 110 CL is equipped with hydraulic steering.

What are the wheel and tyre specifications of the Case IH Quantum 110 CL?

The Case IH Quantum 110 CL has front tyres sized 280/70 R20 and back tyres sized 420/70 R28.

How much is a Case IH Quantum 110 CL 4WD Tractor (2023u20132025) worth?

The residual value of the Case IH Quantum 110 CL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
