CS 105 Pro Basis Case IH CS 105 Pro Basis Specifications & Technical Data (2008—2013)

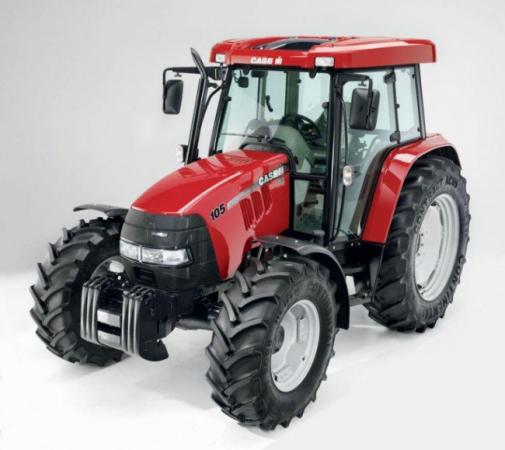

The Case IH CS 105 Pro Basis is a 4-wheel drive tractor manufactured by Case IH from 2008 to 2013. It has a weight of 4.15 tons an…

The Case IH CS 105 Pro Basis is a 4-wheel drive tractor manufactured by Case IH from 2008 to 2013. It has a weight of 4.15 tons and is powered by an engine with a capacity of 74 kW. The tractor has a transport length of 4.22 meters and can travel at a speed of 40 km/h. It has a transport width of 2.17 meters and a transport height of 2.73 meters. The tractor is equipped with special equipment such as a cabin and an ISO Bus.

4WD Tractors Case IH CS 105 Pro Basis

Technical specs - CS 105 Pro Basis Case IH

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Engine power
74 kW
Model series
CS
Back tyres
540/65R38
Front tyres
480/65R24
Transport length
4.22 m
Transport width
2.17 m
Transport height
2.73 m
Travel speed
40 km/h
Transmission
16/8
Weight
4.15 t
Control unit
-/2 ew/dw
Engine manuf.
Case IH
Engine type
k.A.
No. of cylinders
4

is a 0 for the size specification so that means, that no information is available.

Special equipment

Cabin
Yes
Front hydraulics
No
Front PTO
No
Air brakes
No
ISO Bus
Yes
Aircondition
No

Download datasheets (PDF)

Case IH CS 105 Pro Basis FAQ

When was the Case IH CS 105 Pro Basis manufactured?

The Case IH CS 105 Pro Basis was manufactured from 2008 to 2013.

What is the weight of the Case IH CS 105 Pro Basis?

The Case IH CS 105 Pro Basis has a weight of 4.15 tonnes.

What are the physical dimensions of the Case IH CS 105 Pro Basis?

The Case IH CS 105 Pro Basis has a transport length of 4.22 meters, a transport width of 2.17 meters, and a transport height of 2.73 meters.

What is the engine power of the Case IH CS 105 Pro Basis?

The Case IH CS 105 Pro Basis has an engine power of 74 kW.

What is the travel speed of the Case IH CS 105 Pro Basis?

The Case IH CS 105 Pro Basis has a travel speed of 40 km/h.

What are the wheel and tyre specifications of the Case IH CS 105 Pro Basis?

The Case IH CS 105 Pro Basis has front tyres sized 480/65R24 and back tyres sized 540/65R38.

How much is a Case IH CS 105 Pro Basis 4WD Tractor (2008u20132013) worth?

The residual value of the Case IH CS 105 Pro Basis depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
