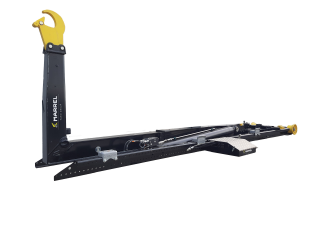

AL 22 S 59 Marrel AL 22 S 59 Specifications & Technical Data (2016—2026)
Technical specs - AL 22 S 59 Marrel
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Lifting force
- 21.57 kN
- max. hook height
- 1.57 m
- Construction type
- S
- Max. container length
- 6.75 m
- max. total weight
- 32 t
- Axles
- 3
- Model series
- AL
Basic unit, unmounted K = articulated hook arm, SZA = semi-trailer, KO = combination of articulated hook arm and winch for slip-off/roll-off container, S = thrust hook arm, SK = articulated thrust hook arm, SiloT = silo transporter
Special equipment
- telescopic
-
No
- with add. articulation
-
No
- 3-way tipping device
-
No
