PM 27.5 S PX PM PM 27.5 S PX Specifications & Technical Data (2017—2020)

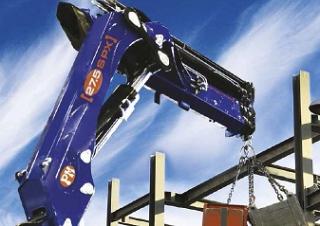

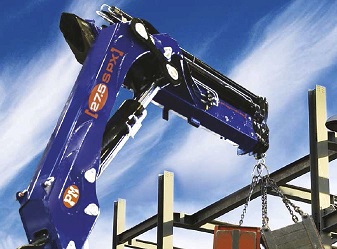

The PM 27.5 S PX is a hydraulic loading crane manufactured by PM from 2017 to 2020. It has a weight of 3.395 tons and a load torqu…
The PM 27.5 S PX is a hydraulic loading crane manufactured by PM from 2017 to 2020. It has a weight of 3.395 tons and a load torque of 211 kNm. The machine has a length of 2.54 meters and a height of 2.415 meters.
More technical details, like: machine width, max. standard boom, carrying capacity, at max. reach, load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.
unmounted without accessories LMB = load torque limit Schwb.= pivot range
Properly equipped, it is a crane for a reliable with an exceptional weight/lifting capacity ratio and a high level of operational safety. This model's structural features guarantee maximum reliability and long working life.
Rack. Slewing up to 410°.
The rack sliding pad does not require any external adjustment. The bushings, made of wear resistant material, have low friction characteristics and guarantee a high level of reliability and reduced maintenance operations.
Outer boom upward angle. Wider operating radius in constrained working areas.
Outer boom with extra upwards 15° angle. Perfect control of the load in every working position. Narrow spaces can be easily reached.
Winch.
An electronically controlled winch with a lifting capacity of 2500 kg can be fitted on the crane, even with winch wire rope transmitted to the jib.
Jib
180° Hydraulic Swing Up Outriggers
The outrigger cylinders can swing 180° upwards without increasing the crane’s size. The rotation is performed on the opposite side in relation to the operator position. Both outriggers always rotate in the same direction.
Equipment & Digital
Ergonomic control station
A new outrigger manoeuvring lever system incorporated horizontally in the control panel ensures complete protection to the operator against incorrect manoeuvres in the stabilisation phase. The new position of the stabilisation controls improves accessibility to the levers and provides a more intuitive use of the controls.
PM Customer Service
Guaranteeing full customer satisfaction is the philosophy that guides PM's technical assistance service. PM supports customers through a constant presence and particular attention to their needs. Quickly getting to the heart of the problem is the spirit with which PM's specialized personnel address assistance requests. PM's qualified technicians are always ready to take on a service request. With the experience and expertise of those who have been working on PM cranes for years, they provide the appropriate response or activate the nearest service center.
