PK 44502 A Palfinger PK 44502 A Specifications & Technical Data (2017—2026)

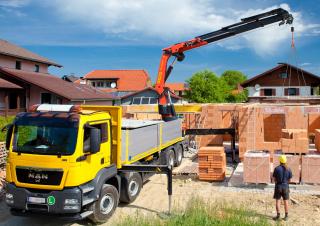

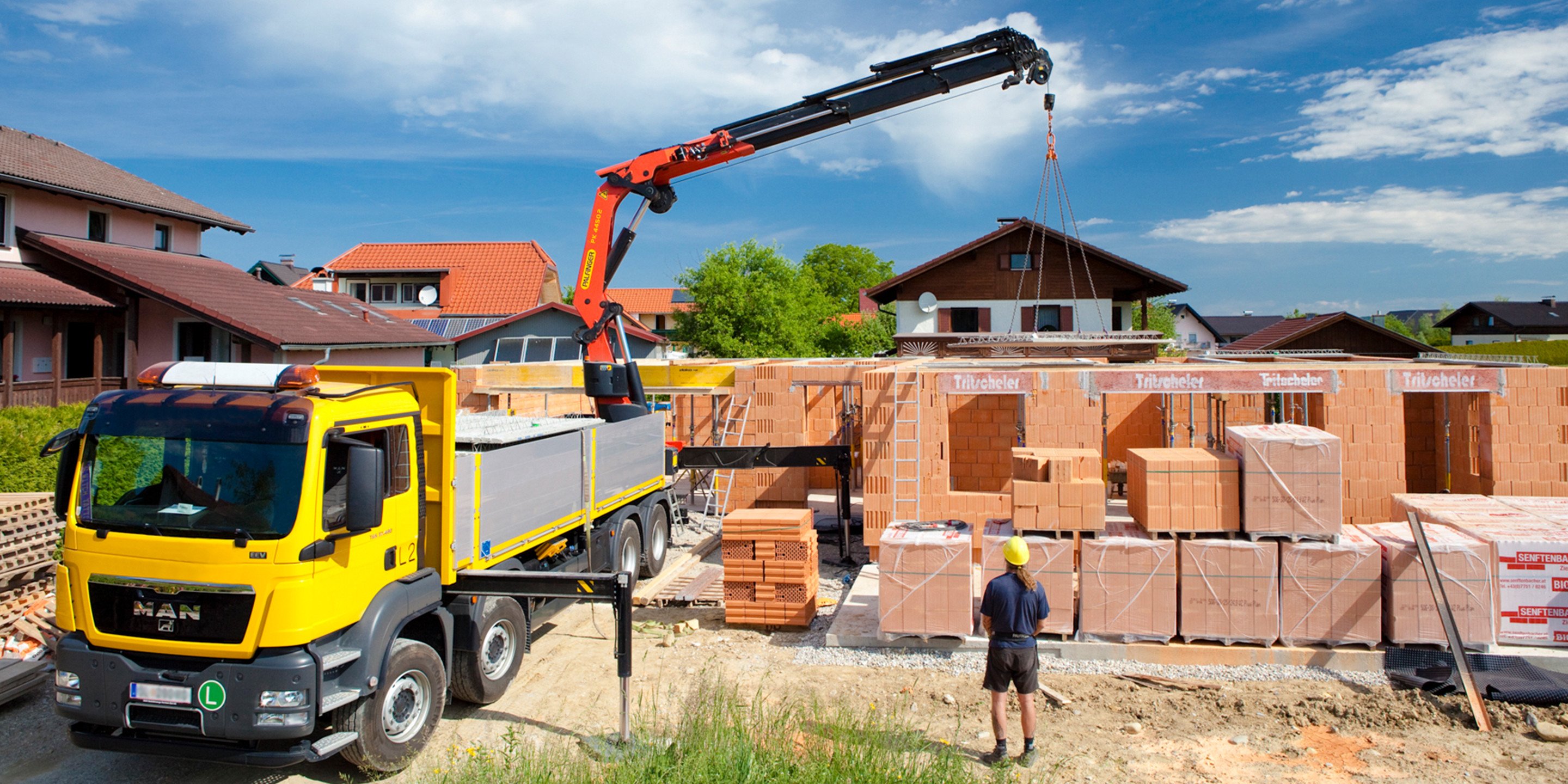

The Palfinger PK 44502 A is a hydraulic loading crane manufactured by Palfinger since 2017. It has a weight of 4.399 tons and a ca…

The Palfinger PK 44502 A is a hydraulic loading crane manufactured by Palfinger since 2017. It has a weight of 4.399 tons and a carrying capacity of 5.5 tons. The load torque is 410.8 kNm, and it has a maximum carrying capacity of 15.6 tons. At its maximum reach of 7.5 meters, it can lift loads. The crane has a maximum standard boom length of 7.5 meters. The machine itself has a length of 2.51 meters, a width of 1.59 meters, and a height of 2.5 meters.

Hydraulic loading cranes Palfinger PK 44502 A

Visit Palfinger live at

Technical specs - PK 44502 A Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
410.8 kNm
machine length
2.51 m
machine width
1.59 m
machine height
2.5 m
max. standard boom
7.5 m
Carrying capacity
5.5 t
at max. reach
7.5 m
Weight
4.399 t
max. carrying capacity
15.6 t

More technical details, like: load of additional jib, at reach, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

Palfinger PK 44502 A overview

Palfinger PK 44502 A features overview

Lifetime Excellence

PALFINGER loader cranes are convincing due to their superior life-cycle performance. They are the most economical and also the most reliable over the entire product life. From solution finding to resale. Better solutions Better efficiency Better ergonomics Higher availability More reliability Better ecology Higher serviceability Higher value retention


Functional design

Robust plastic covers protect crane parts against dirt and damage. Better appearance and increased operational comfort – during the entire lifetime.


Lifting

Power Link Plus

With the 15-degree reverse linkage system, you can reach through low door openings and also work inside buildings. Heavy crane work – even in difficult conditions.


Hpsc

The variable stabiliser positioning of the High Performance Stability Control System makes it possible to utilise the lifting capacity to the maximum. It enables working within tight spaces.


Jib

Low-maintenance extension system

With sliding elements made of synthetic material and the high-quality KTL coating, this boom system significantly simplifies service performed by the operator. This saves time and money – and protects the environment.


Coating technology

The KTL coating lays the foundation for a perfect surface protection. Afterwards the components are either coated in the powder-coating facility or are finished with a two-components-topcoat. High value retention and excellent corrosion protection for the whole life of a crane.


Active oscillation suppression system

The active oscillation suppression system prevents „post-oscillation“ in the event of rapid braking or load changes. The stress peaks on the extension boom system are reduced and material fatigue and wear are minimised. This increases the resale value.
