PK 36.502 TEC 7 D Palfinger PK 36.502 TEC 7 D Specifications & Technical Data (2019—2023)

The Palfinger PK 36.502 TEC 7 D is a hydraulic loading crane manufactured by Palfinger since 2019. It has a weight of 3.52 tons an…

The Palfinger PK 36.502 TEC 7 D is a hydraulic loading crane manufactured by Palfinger since 2019. It has a weight of 3.52 tons and a carrying capacity of 1.94 tons. The load torque is 344 kNm, and the maximum carrying capacity is 7.1 tons. At its maximum reach of 14.5 meters, it can handle a load of 27.1 tons with the additional jib. The maximum standard boom length is 14.7 meters. The machine has a length of 2.55 meters, a width of 1.13 meters, and a height of 2.46 meters. It has special equipment including an articulated boom overstraining, electronic load torque limitation, endless pivoting, hydr. brace support, and remote control.

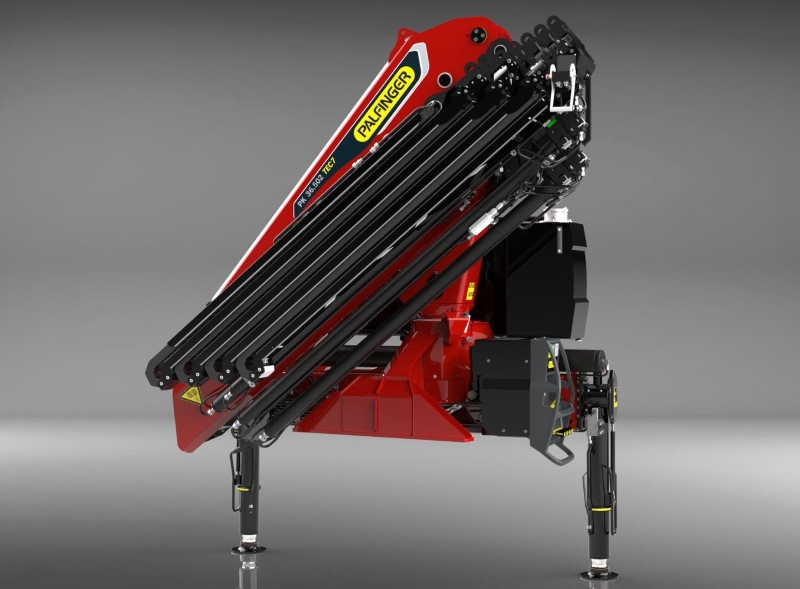

Hydraulic loading cranes Palfinger PK 36.502 TEC 7 D

Visit Palfinger live at

Technical specs - PK 36.502 TEC 7 D Palfinger

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
344 kNm
machine length
2.55 m
machine width
1.13 m
machine height
2.46 m
max. standard boom
14.7 m
Carrying capacity
1.94 t
at max. reach
14.5 m
Load of additional Jib
27.1 t
Weight
3.52 t
max. carrying capacity
7.1 t
at reach
4.5 m
Model series
TEC

More technical details, like: max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
Yes
High seat
No
Remote control
Yes
Adjustable pivoting
No
Articulated boom overstraining
Yes

Download datasheets (PDF)

Palfinger PK 36.502 TEC 7 D overview

Palfinger PK 36.502 TEC 7 D features overview

PALcom P7

The new PALcom P7 features a modern, ergonomic design. The centrally located knob „PALdrive“ and a large colour display enables easy and safe operation.


Lifting

Power Link Plus

With the 15 degree reverse linkage system on the knuckle boom and the 25 degree reverse linkage system fly-jib, you can reach through low door openings and also work inside buildings. Heavy crane work – even in difficult conditions.


Oil bath

The oil bath ensures permanent lubrication. This considerably reduces the maintenance requirements involved in lubricating the crane column and minimises friction.


HPSC-Plus

The modular system HPSC-Plus offers three modules expanding HPSC. Thanks to load detection, length measurement system or stabilizer force detection, lifting capacity can be maximized.


S-hpls

S-HPLS is one of the most important functions of the PALTRONIC. It is a fully automatic system for increasing lifting power. The lifting power and crane speed can be continuously adapted to suit requirements.


High Speed Extension

The High Speed Extension speeds up the extension boom system. Crane works faster and more efficiently. The system can be deactivated, for even more power in the extension cylinders.


Rope winch

A 2.5 ton rope winch is available on the main boom or knuckle boom, featuring a high lifting capacity.


DPS-Plus / DPS-C

The Dual Power System allows multiple uses of the crane both for large outreaches as well as for heavy load operation.


Jib

Workman basket

With the aid of the workman basket, additional duties like installation and maintenance work can be performed with the crane.


Equipment & Digital

SRC and RTC

SRC (Synchronised Rope Control) maintains a constant distance between the pulley head and the hook block, while RTC (Rope Tension Control) automatically controls the rope tension. These two systems are particularly valuable in terms of operator friendliness and efficiency of operations.
