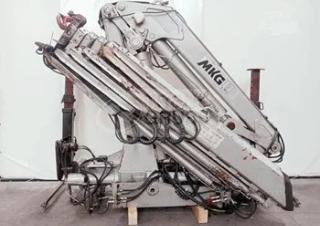

    MKG HLK 151 a2V Specifications & Technical Data (2001-2021)

    Rate this machine now!

    The HLK 151 a2V hydraulic loading crane model is manufactured by MKG. Find and download detailed specs and data sheets for this ma... Read more

    The HLK 151 a2V hydraulic loading crane model is manufactured by MKG. Find and download detailed specs and data sheets for this machine here.

    This MKG Hydraulic Loading Crane belongs to the medium sized machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.5m x 0.79m. The max. Standard boom of this MKG model is 5.86m. The model MKG HLK 151 a2V offers a maximum load capacity of 2.42t. The load torque of this model is 151kNm.

    Since 2001, this model has included Hydr. Brace support, High seat and Electronic load torque limitation. Remote control, Adjustable pivoting and Endless pivoting are not provided on this model as of 2018. Find detailed specifications and machine details in the original MKG HLK 151 a2V datasheet. Available in English and German, LECTURA Specs offers a free download of highly detailed specifications and machine descriptions of this model.

    This model can be acquired for a list price between €39,000 and €49,000. Production of the HLK 151 a2V in 2018. This machine is still being manufactured by MKG and is offered with a list price between €39,000 and €49,000.

    Based on other specifications and pricing variations, the MKG HLK 151 a2V can be considered similar to the Fassi F 170 AT 13, PM 16523 J 53 and PM 16523 J 53. MKG currently produces 368 other hydraulic loading cranes, which range from 45kNm up to 991kNm - the most visited on LECTURA Specs are HLK 50 HP a3, HLK 140 HP a1V, HLK 45 a3. This HLK 151 a2V hydraulic loading crane, which was produced between 2001 and 2018 ranks in the LECTURA index at #2407. Want more detailed specifications? Download the latest MKG HLK 151 a2V specs data sheet on LECTURA Specs today!

    Technical specs - HLK 151 a2V MKG

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    Load Torque 151 kNm
    machine length 2.5 m
    machine width 0.79 m
    machine height 2.72 m
    max. standard boom 5.86 m
    Carrying capacity 1.16 t
    at max. reach 10.86 m
    at max. reach 11.06 m
    Weight 2.24 t
    max. carrying capacity 2.42 t
    at reach 5.66 m
    Required power 19 kW
    Load of additional Jib ###
    max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    HLK 151 a2V MKG - Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
