1510-K5 HMF 1510-K5 Specifications & Technical Data (2008—2019)

The HMF 1510-K5 is a truck-mounted loading crane manufactured by HMF from 2008 to 2019. It has a weight of 2.105 tons and a carryi…

The HMF 1510-K5 is a truck-mounted loading crane manufactured by HMF from 2008 to 2019. It has a weight of 2.105 tons and a carrying capacity of 0.42 tons. The load torque of this crane is 126 kNm. At its maximum reach, it can extend up to 19.6 meters. The maximum standard boom length is 14.9 meters. The machine has a length of 2.5 meters, a width of 0.825 meters, and a height of 2.25 meters. It is equipped with adjustable pivoting, electronic load torque limitation, and hydraulic brace support.

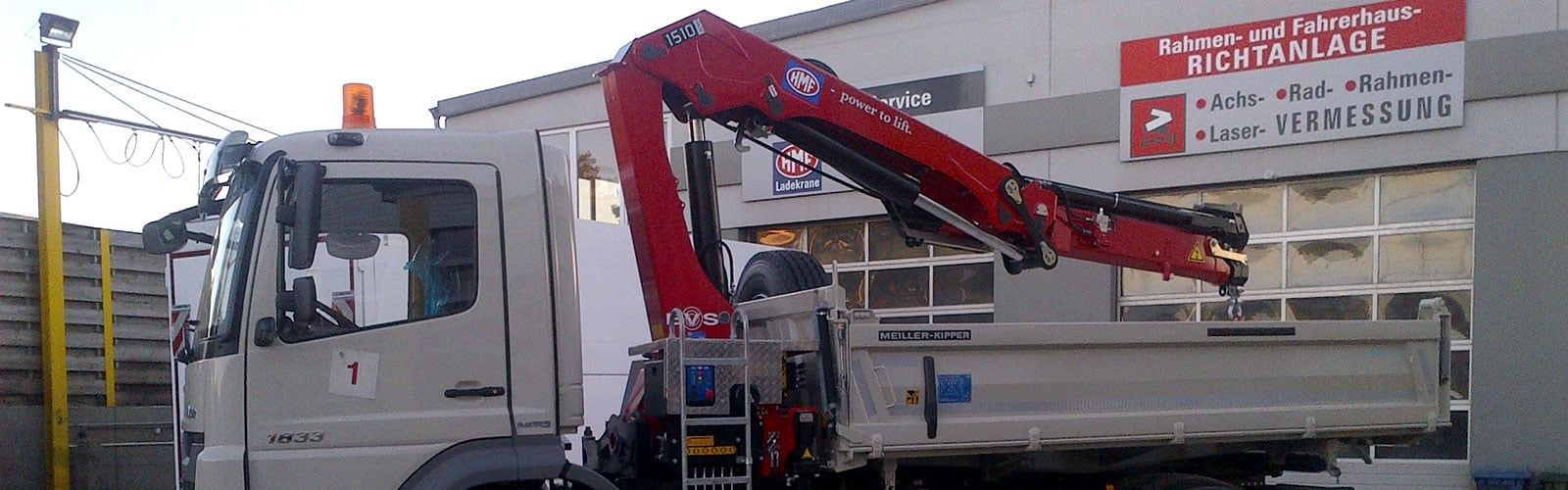

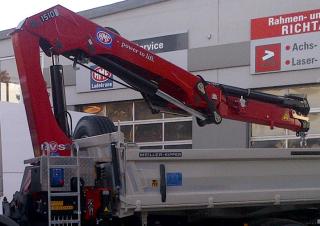

Hydraulic loading cranes HMF 1510-K5

Technical specs - 1510-K5 HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
126 kNm
machine length
2.5 m
machine width
0.825 m
machine height
2.25 m
max. standard boom
14.9 m
Carrying capacity
0.42 t
at max. reach
19.6 m
Weight
2.105 t
Model series
K

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
Yes
Articulated boom overstraining
No
