1300-K2 HMF 1300-K2 Specifications & Technical Data (2008—2019)

The HMF 1300-K2 is a hydraulic loading crane manufactured by HMF from 2008 to 2019. It has a weight of 1.5 tons and a carrying cap…

The HMF 1300-K2 is a hydraulic loading crane manufactured by HMF from 2008 to 2019. It has a weight of 1.5 tons and a carrying capacity of 0.6 tons. With a load torque of 115 kNm, it can reach a maximum distance of 15 meters. The crane's standard boom extends up to 8.3 meters. The machine itself has a length of 2.5 meters, a width of 0.825 meters, and a height of 2.25 meters. It is equipped with adjustable pivoting, electronic load torque limitation, and hydraulic brace support.

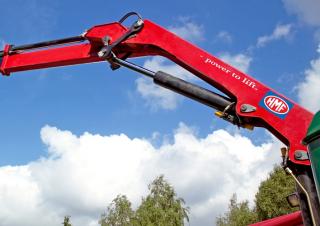

Hydraulic loading cranes HMF 1300-K2
Hydraulic loading cranes HMF 1300-K2
Hydraulic loading cranes HMF 1300-K2
Hydraulic loading cranes HMF 1300-K2

Technical specs - 1300-K2 HMF

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
115 kNm
machine length
2.5 m
machine width
0.825 m
machine height
2.25 m
max. standard boom
8.3 m
Carrying capacity
0.6 t
at max. reach
15 m
Weight
1.5 t
Model series
K

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
Yes
Articulated boom overstraining
No
