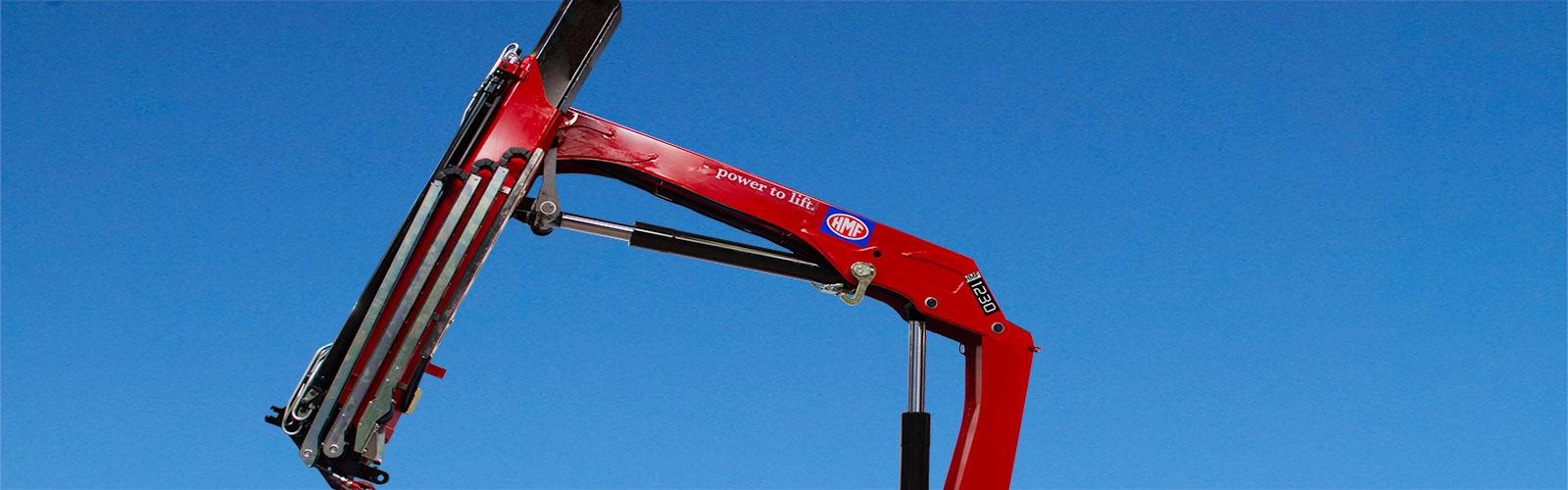

    HMF 1230-K3 Specifications & Technical Data (2016-2021)

    Rate this machine now!

    HMF is the manufacturer of the hydraulic loading crane model 1230-K3. Find and download detailed specs and data sheets for this ma... Read more

    HMF is the manufacturer of the hydraulic loading crane model 1230-K3. Find and download detailed specs and data sheets for this machine here.

    The 1230-K3 is categorised in the smallest machine segment in the hydraulic loading crane category. The measurements of this hydraulic loading crane are 2.5m x 0.747m. 10.5m is the maximum length of the standard boom for the 1230-K3 crane. 2.6t is the maximum carrying capacity of this HMF 1230-K3 crane, according to its specification. HMF 1230-K3 has 109kNm in load torque.

    It has been sold without Electronic load torque limitation, Remote control and Articulated boom overstraining as of 2018. Find detailed specifications and machine details in the original HMF 1230-K3 datasheet. Specification sheet is available for a free download in Spanish, German, French and English - providing the machine descriptions and more detailed specs about this particular model.

    To this day, this machine is still being manufactured.

    At present, 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm are produced by HMF. Of these, 260-T2, 6020-K6 and also 340-K2 are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #3484, this 1230-K3 hydraulic loading crane has models that date from 2016 to 2018. Want more detailed specifications? Download the latest HMF 1230-K3 specs data sheet on LECTURA Specs today!

    Technical specs - 1230-K3 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 109 kNm
    • machine length 2.5 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 10.5 m
    • Carrying capacity 0.98 t
    • at max. reach 10.5 m
    • Weight 1.315 t
    • max. carrying capacity 2.6 t
    • at reach 4.3 m
    • Required power 20 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
