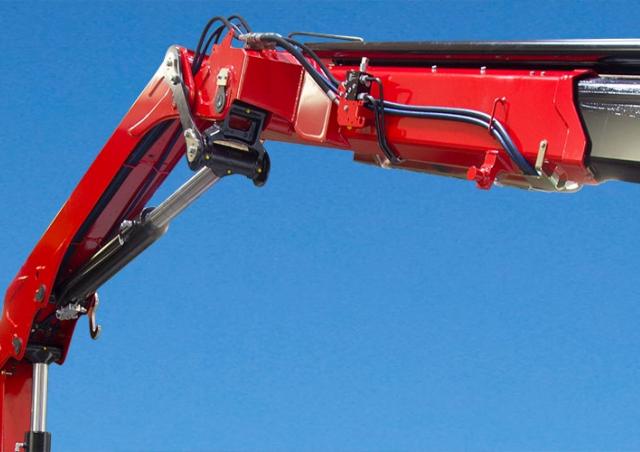

    HMF 1010-K5 Specifications & Technical Data (2017-2021)

    Rate this machine now!

    HMF is the manufacturer of the hydraulic loading crane model 1010-K5. Find and download detailed specs and data sheets for this ma... Read more

    HMF is the manufacturer of the hydraulic loading crane model 1010-K5. Find and download detailed specs and data sheets for this machine here.

    This HMF Hydraulic Loading Crane belongs to the smallest machine segment in the hydraulic loading crane category. This model is 2.35m long and 0.747m wide. The max. Standard boom of this HMF model is 14m. The HMF 1010-K5 can carry up to 2.19t. This model is constructed to deliever a load torque of 88kNm.

    It does not include Electronic load torque limitation, Endless pivoting and Adjustable pivoting. More detailed specifications and machine descriptions can be found in the original HMF 1010-K5 specs data sheet. Specification sheet is available for a free download in German, Spanish, French and English - providing the machine descriptions and more detailed specs about this particular model.

    To this day, this machine is still being manufactured.

    At present, 429 other hydraulic loading cranes, which range from 5kNm up to 756kNm are produced by HMF. Of these, 6020-K6 , 260-T2 and also 340-K2 are the most frequently visited on LECTURA Specs. Ranked in the LECTURA index at #3267, this 1010-K5 hydraulic loading crane has models that date from 2017 to 2018. Want more detailed specifications? Download the latest HMF 1010-K5 specs data sheet on LECTURA Specs today!

    Technical specs - 1010-K5 HMF

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

    • Load Torque 88 kNm
    • machine length 2.35 m
    • machine width 0.747 m
    • machine height 2.135 m
    • max. standard boom 14 m
    • Carrying capacity 0.5 t
    • at max. reach 14 m
    • Weight 1.36 t
    • max. carrying capacity 2.19 t
    • at reach 4.1 m
    • Required power 22-38 kW
    • Load of additional Jib ###
    • max. hook height ###

    unmounted without accessories LMB = load torque limit Schwb.= pivot range

    Special equipment

    • Hydr. brace support
    • Electronic load torque limitation
    • Endless pivoting
    • High seat
    • Remote control
    • Adjustable pivoting
    • Articulated boom overstraining
