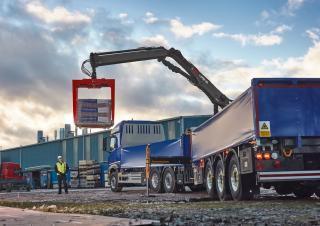

L-HiPro 165 DLL-1 Hiab L-HiPro 165 DLL-1 Specifications & Technical Data (2019—2025)

Load Stability System (LSS)

LSS automatically dampens abrupt stops that could otherwise cause the load to swing. This makes crane operation faster and smoother and helps protect the cargo, the vehicle and the work environment in the vicinity of the crane against potential damage.

CTC – Crane Tip Control

Crane Tip Control is a software feature for HIAB’s HiPro control system that makes it possible to perform complex movements with just one lever. As the name suggests, CTC gives the user improved control of the tip of the crane. Operators only need to focus on moving their load to a specific point in space, and CTC will calculate the optimum path to get there.

PFD – Pump Flow Distribution

PFD distributes oil in perfect proportion to control system lever movements, ensuring seamless operation. Combined with optimised hydraulics and high-quality valves, this minimises energy needs and fuel consumption.

Your choice of control

With HIAB building materials cranes, you have a range of possibilities to match the method of steering to your specific needs. Options ranging from remote control on the ground to control from a stand-up platform or high seat give your operators the power to work from the position that makes the most sense for them and for your business.

HIAB L-HiPro Series

When you choose HIAB L-HiPro 145, L-HiPro 165, L-HiPro 195 or L-HiPro 235, you don’t just get a reliable and versatile building materials crane. You also get HIAB HiPro – the most advanced remote control system in the industry. With a high flow of oil that allows many simultaneous movements, it ensures the highest speed and precision – for the greatest productivity.

Control that saves time and fuel

The instant response from the HiPro system is nothing short of extraordinary. Pump Flow Distribution (PFD) keeps the crane’s movements in perfect proportion to your control movements, and because the oil can be supplied with a variable oil pump, no more oil is pumped than necessary. That ensures the lowest possible fuel consumption, which means lower emissions as well.

Safer productivity

HIAB build materials cranes with the HiPro control system are also loaded with smart innovations that increase efficiency with greater ease of use, while simultaneously reducing risk. One example is the revolutionary Crane Tip Control (CTC), which lets even beginning operators make complicated movements to simply and safely deliver the load from point A to B. Another feature is the Load Stability System for vertical and horizontal movements. This system automatically compensates for unintentionally excessive lever motions, protecting the crane, operator and the surrounding environment.

Valuable performance

HIAB HiDuo is a choice for high efficiency and value. It ensures great performance and fast load cycles, for example by allowing you to perform several actions simultaneously. The crane responds instantly to your lever movements and provides added stability even during vertical lifts, which means you have full control over the load at all times.

Pallet fork

Handling loads with a pallet fork has a number of advantages. Since the load is palletised and lifted from underneath, it is possible to lift many different types of loads – including soft and flexible loads as well as solid ones. A pallet fork is also less expensive than the main alternative, a brick grab.

Brick grab

There is a lot to gain from using a brick grab, including speedier handling of your loads. The load does not have to be palletised, and it can be handled even in awkward positions where space is limited. HIAB brick grabs are extremely versatile and made to withstand heavy-duty work – all day, every day.

Quick Change Systems

The quick change system enables an easy exchange between different attachments. The mechanical coupling and locking is achieved by the turning motion of the rotator. You simply disconnect the quick couplings and disengage the locking device manually. The quick change system allows the easy exchange between pallet fork and brick stack grapple for example.

IQ control

The HIAB L-HiPro and L-HiDuo cranes feature the SPACE X4 intelligence system for efficient monitoring and controlling all electronic functions. The system has a simple and intuitive interface for maximal peace-of-mind. To further facilitate operation, the HIAB L-HiPro and L-HiDuo cranes are also equipped with an external display as an option.

Be the best

HIAB HiPro is simply the best of the best, offering top versatility and precision for the very highest productivity. It is designed for ultra-quick and ultra-smooth response, with support for a large number of simultaneous movements. That brings out the best in both crane and operator, ensuring rapid load cycles, total safety and the lowest lifetime cost.

True intelligence for total control

HIAB HiDuo features the built-in SPACE X4 intelligence system for safe and effective load handling. The ergonomic HIAB XSDrive controller further provides a smooth and rapid response to every movement your operator makes. You can steer 24 proportional functions and seven on/off functions, performing several actions simultaneously thanks to the efficient valve technology.

Built to Perform

Hiab is the world’s leading provider of on-road load-handling equipment, intelligent services and digitally connected solutions. Hiab’s offering encompasses class-leading load handling equipment including HIAB loader cranes, LOGLIFT and JONSERED forestry and recycling cranes, MOFFETT truck-mounted forklifts, MULTILIFT demountables, and tail lifts under ZEPRO, DEL, and WALTCO brands. As the industry pioneer, our commitment is to increase efficiency in our customers’ businesses and to shape the future of intelligent load handling. Hiab is part of Cargotec Corporation.
