F 425 AC 2.26 e-dynamic Fassi F 425 AC 2.26 e-dynamic Specifications & Technical Data (2012—2026)

The Fassi F 425 AC 2.26 e-dynamic is a hydraulic loading crane manufactured by Fassi since 2012. It has a weight of 4.83 tons and …

The Fassi F 425 AC 2.26 e-dynamic is a hydraulic loading crane manufactured by Fassi since 2012. It has a weight of 4.83 tons and a carrying capacity of 0.75 tons. With a load torque of 360 kNm, it can reach a maximum distance of 23.85 meters. The crane's standard boom extends up to 14.9 meters. The machine itself has a length of 2515 meters, a width of 1.275 meters, and a height of 2.43 meters. It is equipped with special features such as an articulated boom overstraining, electronic load torque limitation, hydraulic brace support, and a remote control.

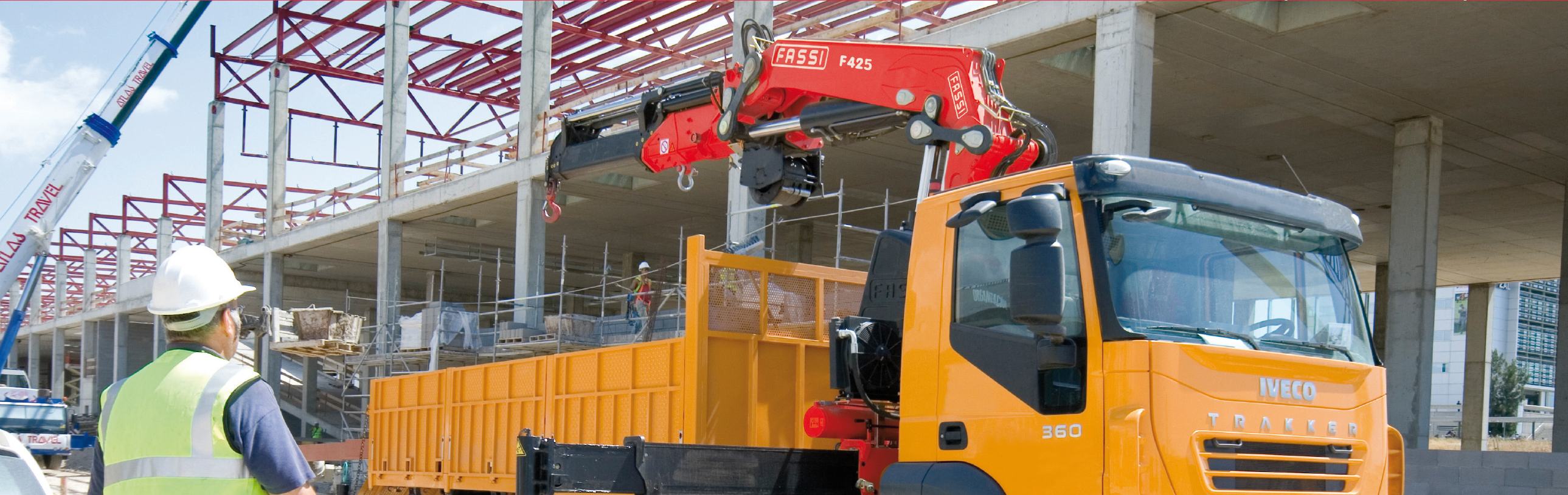

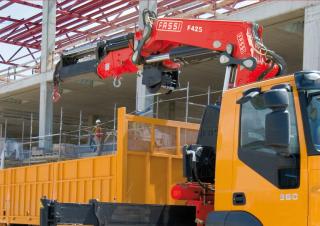

Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic
Hydraulic loading cranes Fassi F 425 AC 2.26 e-dynamic

Technical specs - F 425 AC 2.26 e-dynamic Fassi

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
360 kNm
machine length
2.515 m
machine width
1.275 m
machine height
2.43 m
max. standard boom
14.9 m
Carrying capacity
0.75 t
at max. reach
23.85 m
Weight
4.83 t
Model series
AC

More technical details, like: load of additional jib, max. carrying capacity, at reach, max. hook height, required power are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
Yes
Electronic load torque limitation
Yes
Endless pivoting
No
High seat
No
Remote control
Yes
Adjustable pivoting
No
Articulated boom overstraining
Yes
