Effer 955 8S Specifications & Technical Data (2017-2025)

The Effer 955 8S is a truck-mounted loading crane manufactured by Effer since 2017. It weighs 8.37 tons and has a carrying capacit…

The Effer 955 8S is a truck-mounted loading crane manufactured by Effer since 2017. It weighs 8.37 tons and has a carrying capacity of 2.82 tons. The load torque is 723 kNm, and it has a maximum carrying capacity of 23.84 tons. At its maximum reach of 20.58 meters, it can carry a load of 0.72 tons with the additional jib. The machine's standard boom length is also 20.58 meters. The machine itself has a length of 8.71 meters, a width of 1.69 meters, and a height of 2.485 meters. At its maximum reach of 33.55 meters, it can carry a load at a reach of 2.92 meters.

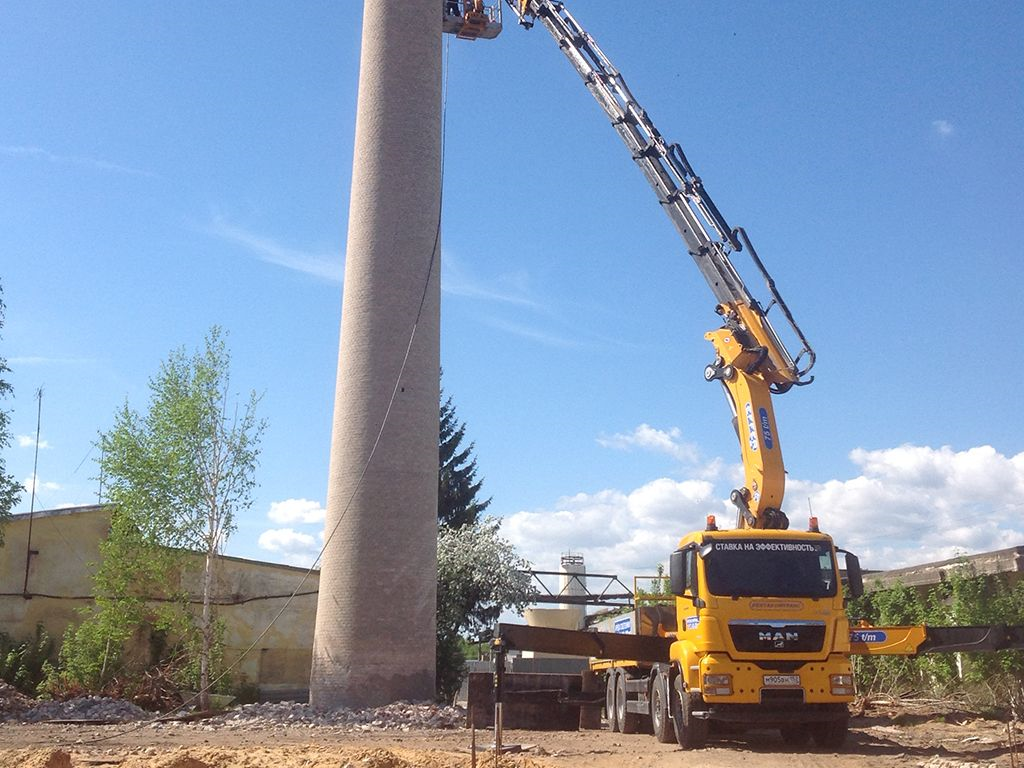

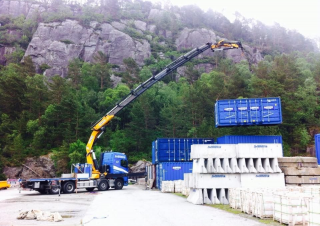

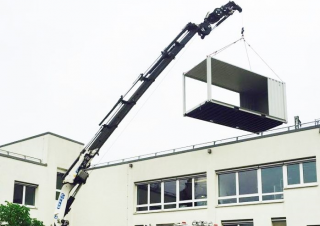

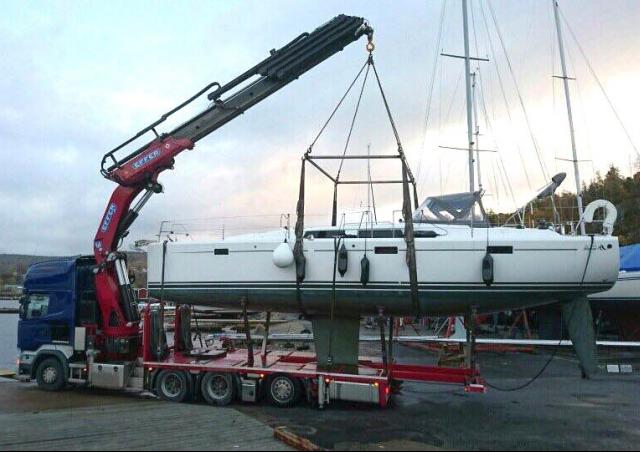

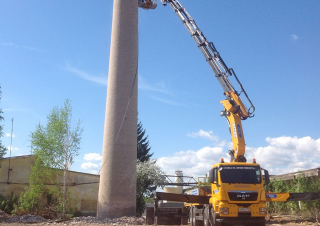

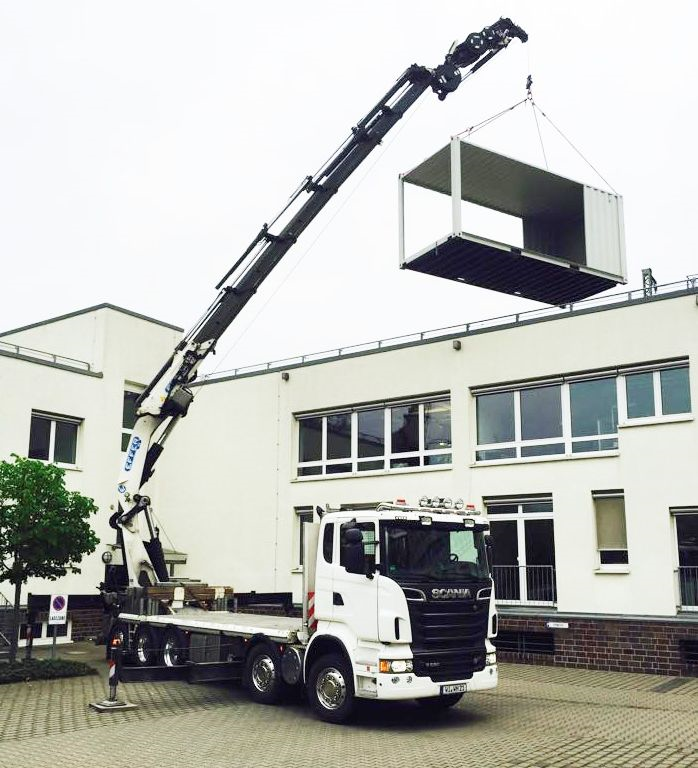

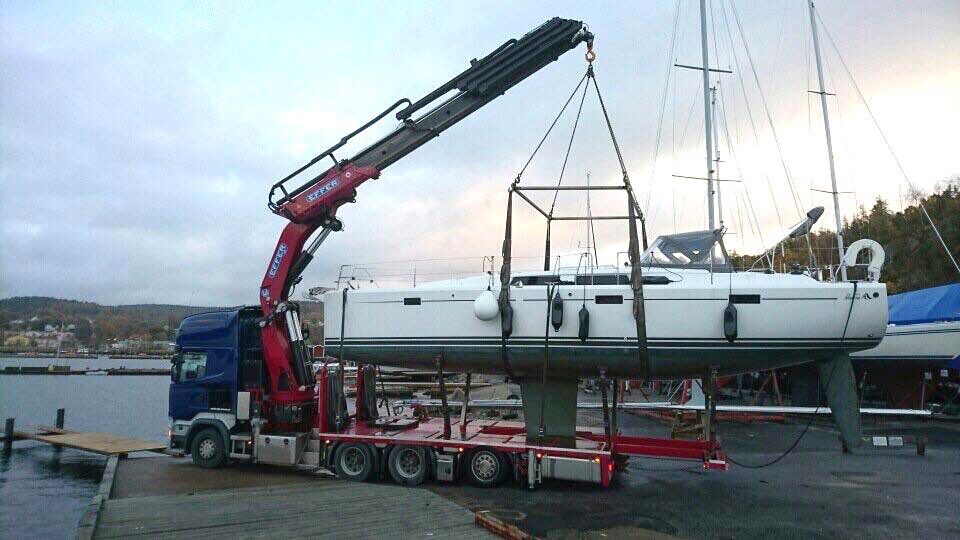

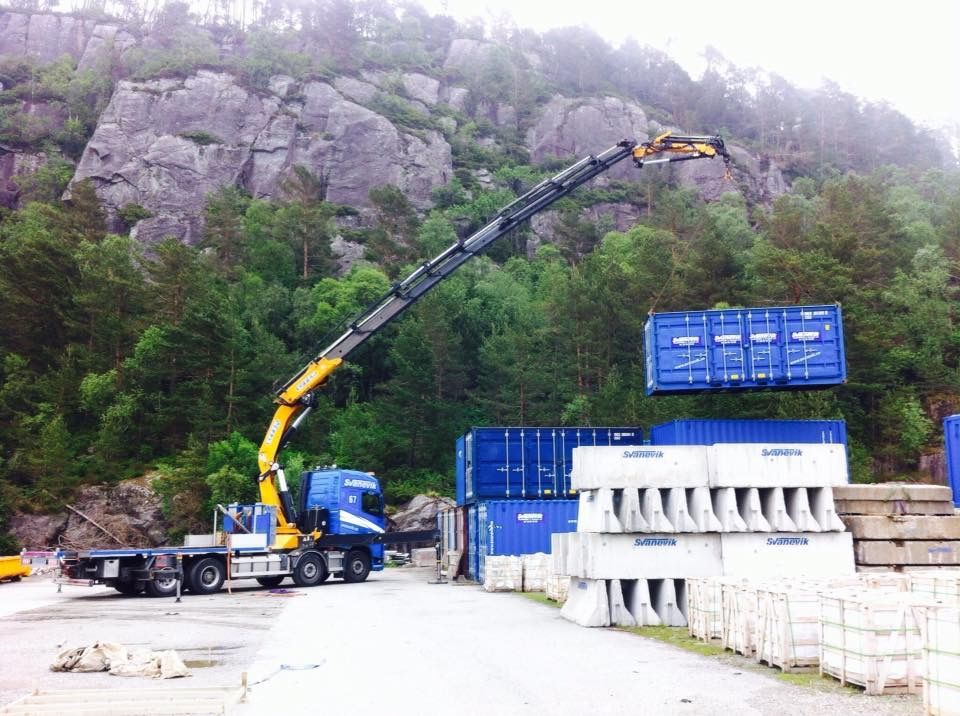

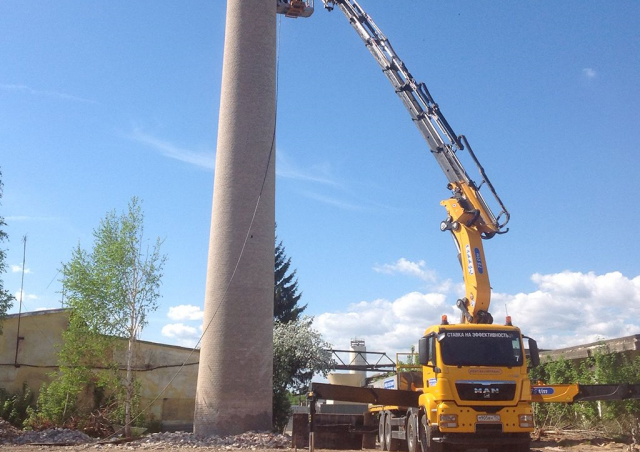

Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S
Hydraulic loading cranes Effer 955 8S

Technical specs - 955 8S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
723 kNm
machine length
8.71 m
machine width
1.69 m
machine height
2.485 m
max. standard boom
20.58 m
Carrying capacity
2.82 t
at max. reach
20.58 m
Load of additional Jib
0.72 t
Weight
8.37 t
max. carrying capacity
23.84 t
at reach
2.92 m

More technical details, like: max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No

Download datasheets (PDF)

Buy & Rent

Compare Effer 955 8S with similar Hydraulic loading cranes

Effer 955 8S

Effer 955 8S

Load Torque:
723 kNm
machine length:
8.71 m
machine width:
1.69 m
machine height:
2.485 m
