685 9S Effer 685 9S Specifications & Technical Data (2017—2026)

The Effer 685 9S is a hydraulic loading crane manufactured by Effer since 2017. It has a weight of 7.195 tons and a carrying capac…

The Effer 685 9S is a hydraulic loading crane manufactured by Effer since 2017. It has a weight of 7.195 tons and a carrying capacity of 1.73 tons. The load torque is 550.7 kNm, and it has a maximum carrying capacity of 17.33 tons. At its maximum reach of 21 meters, it can lift loads. The crane has a maximum standard boom length of 21 meters. The machine itself has a length of 8.71 meters, a width of 1.72 meters, and a height of 2.465 meters. At a reach of 2.92 meters, it can still perform its lifting capabilities.

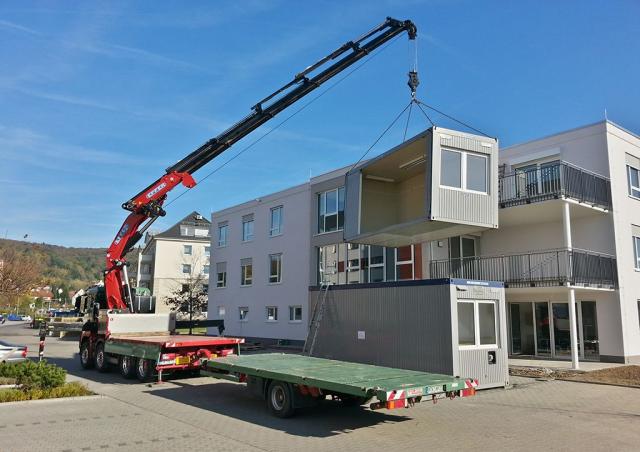

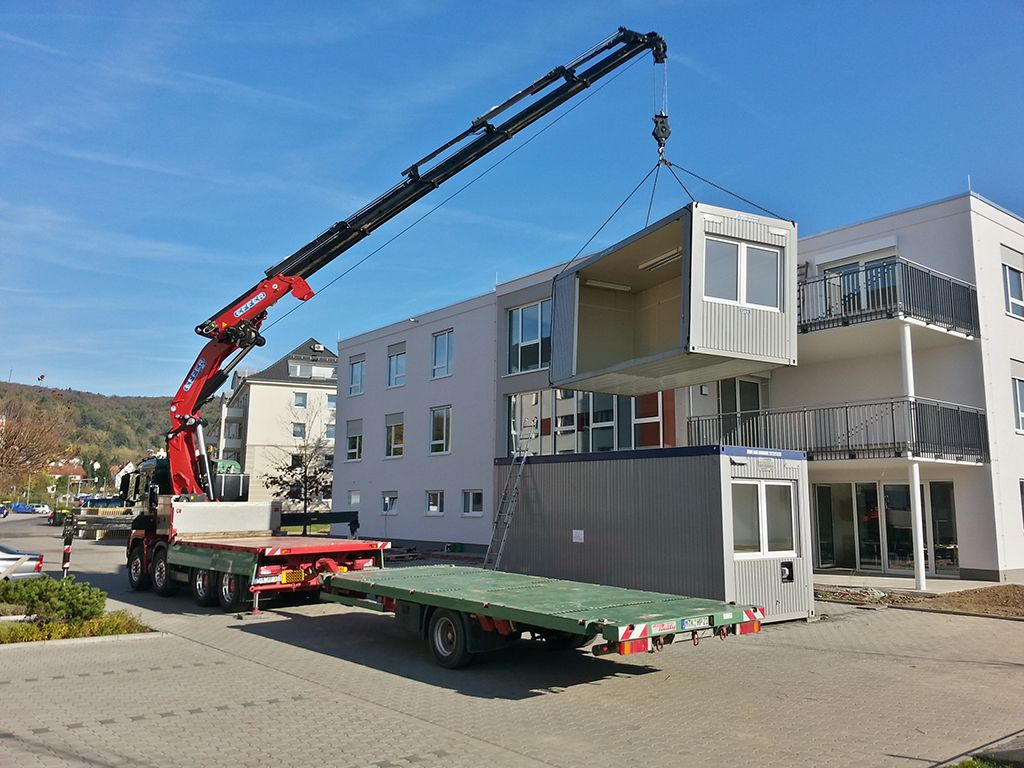

Hydraulic loading cranes Effer 685 9S

Technical specs - 685 9S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
550.7 kNm
machine length
8.71 m
machine width
1.72 m
machine height
2.465 m
max. standard boom
21 m
Carrying capacity
1.73 t
at max. reach
21 m
Weight
7.195 t
max. carrying capacity
17.33 t
at reach
2.92 m

More technical details, like: load of additional jib, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
