505 4S Effer 505 4S Specifications & Technical Data (2017—2023)

The Effer 505 4S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 5.075 tons and a carrying c…

The Effer 505 4S is a truck-mounted loading crane manufactured by Effer since 2017. It has a weight of 5.075 tons and a carrying capacity of 3.33 tons. The load torque is 428 kNm, and it has a maximum carrying capacity of 13.98 tons. At its maximum reach of 12.33 meters, it can carry loads. The crane's standard boom also extends up to 12.33 meters. The machine itself has a length of 7.83 meters, a width of 1.305 meters, and a height of 2.45 meters. At a reach of 3.01 meters, it can still perform its loading functions.

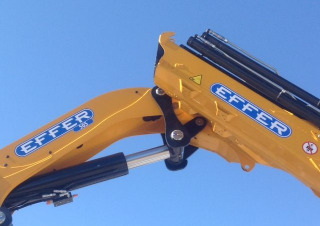

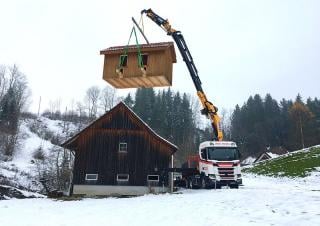

Hydraulic loading cranes Effer 505 4S

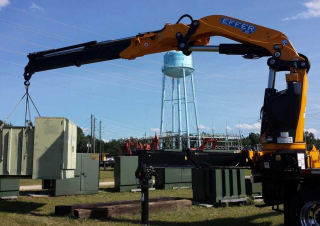

Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S

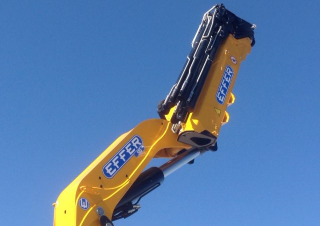

Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S
Hydraulic loading cranes Effer 505 4S

Technical specs - 505 4S Effer

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Load Torque
428 kNm
machine length
7.83 m
machine width
1.305 m
machine height
2.45 m
max. standard boom
12.33 m
Carrying capacity
3.33 t
at max. reach
12.33 m
Weight
5.075 t
max. carrying capacity
13.98 t
at reach
3.01 m

More technical details, like: load of additional jib, max. hook height, required power, model series are available in the full technical specs.

unmounted without accessories LMB = load torque limit Schwb.= pivot range

Special equipment

Hydr. brace support
No
Electronic load torque limitation
No
Endless pivoting
No
High seat
No
Remote control
No
Adjustable pivoting
No
Articulated boom overstraining
No
