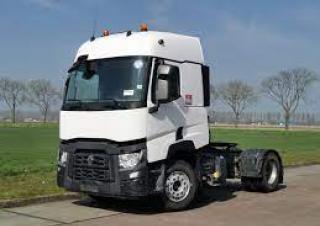

C 460.18 4X2 R E6 Renault (2013 - 2022) lorry truck specs & dimensions

Cab

Cab exterior: Day cab All steel Cab, electro-zinc plated and cataphoretic paint treatment. Cab paint colour: White ekla technical code: 09350 Red badge Black front face finish Aerodynamic draft deflectors on the headlamps Four point mechanical cab suspension. 2 heated, remote control rear view mirrors. 2 wide angle rearview mirrors. Kerb view mirror. Rear view mirrors for bodywork up to 2.55 m wide Fold-back front view mirror Air horn Spray suppression on front wings Basic accessories: cab colour External sun visor Tinted, laminated windscreen. Tinted rear cab window

Cab interior

Performance finish Quality roof console, 1 storage compartment with key lock, 1 storage space with net and 4 ISO modules Interior sun blind on windscreen DTCO 4.0 digital chronotachograph Manually operated roof hatch. Air-suspended driver's seat with fitted seat belt Driver's armrest Safety belt warning. Fixed passenger's seat with seat belt. Vinyl and fabric seat trim. Removable rear storage compartment, left-hand side Reading lamps on overhead ledge Direct cab lighting Cab lighting time-delay. Clothes rail Electrically operated door windows Electronic air conditioning. Cab air filtration, washable filter Handbook in Czech. 2 loudspeakers.

Service brake

Braking system with two independent circuits. Ventilated disc brakes. Electronic management of air production by EACU (Electronic Air Control Unit): Dryer cartridge optimised by preventive maintenance. Twin-cylinder air compressor 900 l/min, 636 cm³. Two line trailer braking system (ISO connections). Trailer brake device on rear crossmember. Low-position rear brake cylinders.

Options

Automatic engine cut-off (5 min) Engine rear power take-off: Flange output DIN 100 Continuous drive Direction of rotation: as engine

Retarder

OPTIBRAKE (power rating 300 kW at 2300 rpm): combination of the exhaust brake and valve compression braking, coupled to service brake

Gearbox

Optidriver AT 2412F gearbox (14.94 - 1) with automatic clutch. Aluminium housing. Max. torque 2400 Nm, 12 forwards gears and 3 reverse gears. Steering wheel-mounted operating mode selection (automatic/manual) via gear shift selector. Gearbox rear intermediate housing in aluminium. Gearbox oil cooler, oil/water heat exchanger.

Steering

Power steering, variable-flow hydraulic pump. Steering ratio 20:1 - Steering wheel diameter 460 mm. Driving on the right.
