X6 4344 TS Ginaf (2017 - 2026) lorry truck specs & dimensions

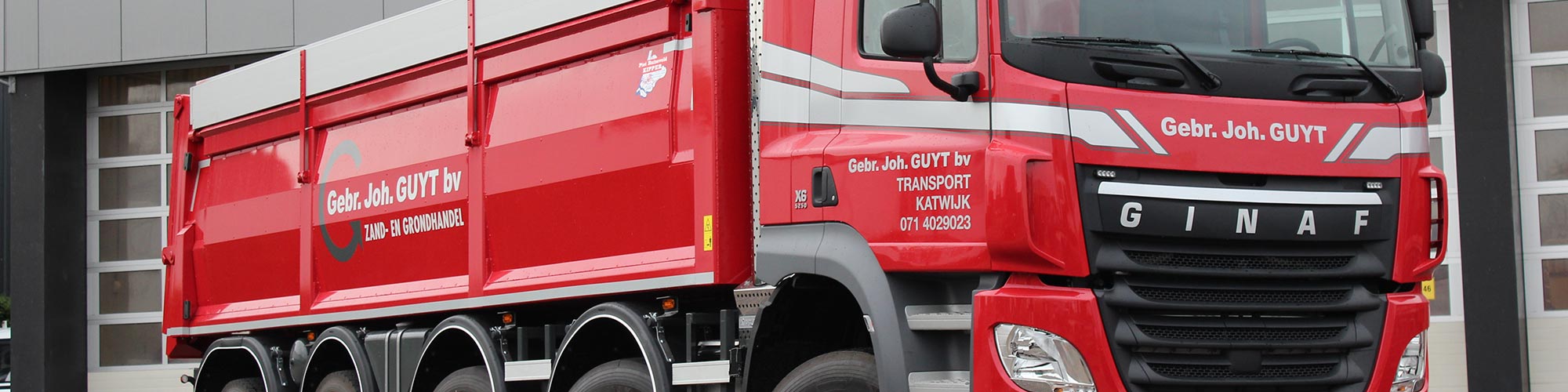

The Ginaf X6 4344 TS is a rigid chassis truck manufactured by Ginaf since 2017. It is equipped with an engine power of 270 kW and has a gross vehicle weight of 44 tons.

Trucks Rigid Chassis Ginaf X6 4344 TS
Trucks Rigid Chassis Ginaf X6 4344 TS
Trucks Rigid Chassis Ginaf X6 4344 TS
Trucks Rigid Chassis Ginaf X6 4344 TS

Technical specs - X6 4344 TS Ginaf

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Gross vehicle weight
44 t
Drive type
8x6
Engine power
270-390 kW
Emission standard
EURO VI
Front suspension
B
Rear suspension
B
Transmission type
A/man.
Model series
X6

More technical details, like: gross combination weight, wheelbase, cab are available in the full technical specs.

Download datasheets (PDF)

Ginaf X6 4344 TS overview

Safety

Safety

Euro 6 engines HPVS: level transverse control HPVS: integrated roll stabilisation HPVS: Container pull-up system HPVS: silo system Brakes (up to 3-fold/separated braking system)


Dimensions / Weight / Chassis

Type designation GINAF trucks

The meaning of the four digits is explained by the following example: GINAF X6 4444 TS-H. X6 stands for DAF CF cab of the EURO 6 type. The first digit indicates the total number of axles: 4. The second 4 indicates the number of drive axles: 4. (A HydroAxle+ also counts here as a max. 9-tonne drive axle.) The number 44 stands for the maximum legal vehicle weight: 44 tonnes (rounded up from 43.5 tonnes). TS-H indicates that the vehicle is fitted with a TRIDEM® arrangement, an EVS steered rigid rear axle and a HydroAxle+.


Payload

High legal axle loads HPVS: even axle load distribution TRIDEM® axle arrangement (possible with 4-axles and 5-axles) Low unladen weight.
