TTD 105 Möslein (2019 - 2026) Trailer Specs & Dimensions

max. total weight: 10500kg – Net weight: 3280kg – Net load: 7220kg – axle load: 10.6t – Flat platform load surface: 5500x2430mm – …

max. total weight: 10500kg – Net weight: 3280kg – Net load: 7220kg – axle load: 10.6t – Flat platform load surface: 5500x2430mm – Total length: 7450mm

All specifications of Möslein TTD 105 trailer - engine and emission standard, cab type, dimensions, weight, drive type - detailed Möslein TTD 105 trailer specs.

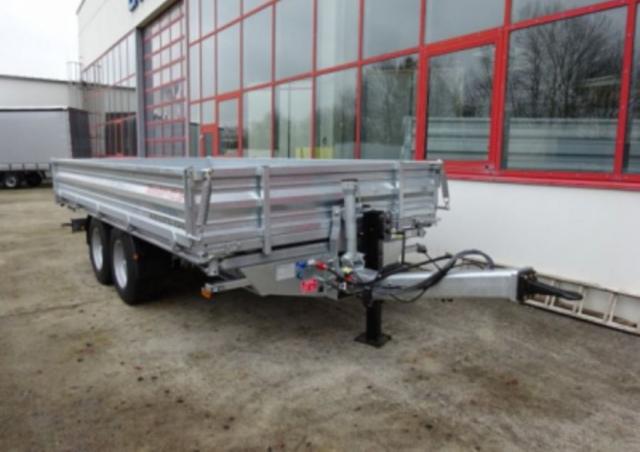

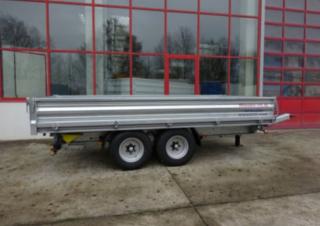

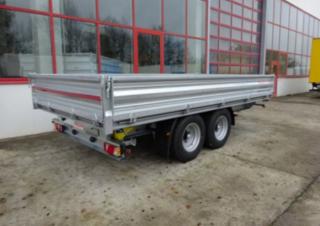

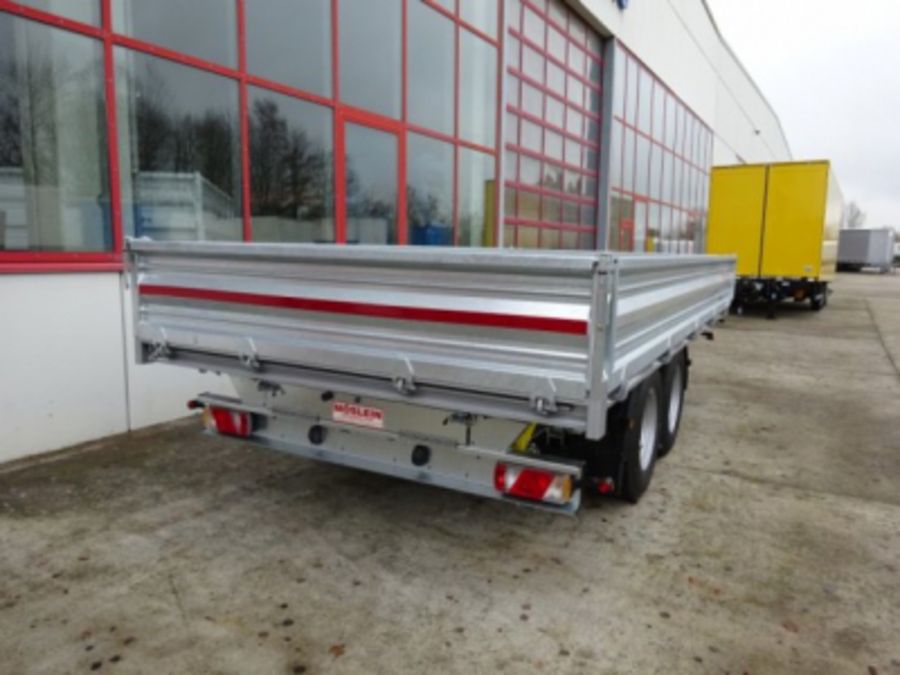

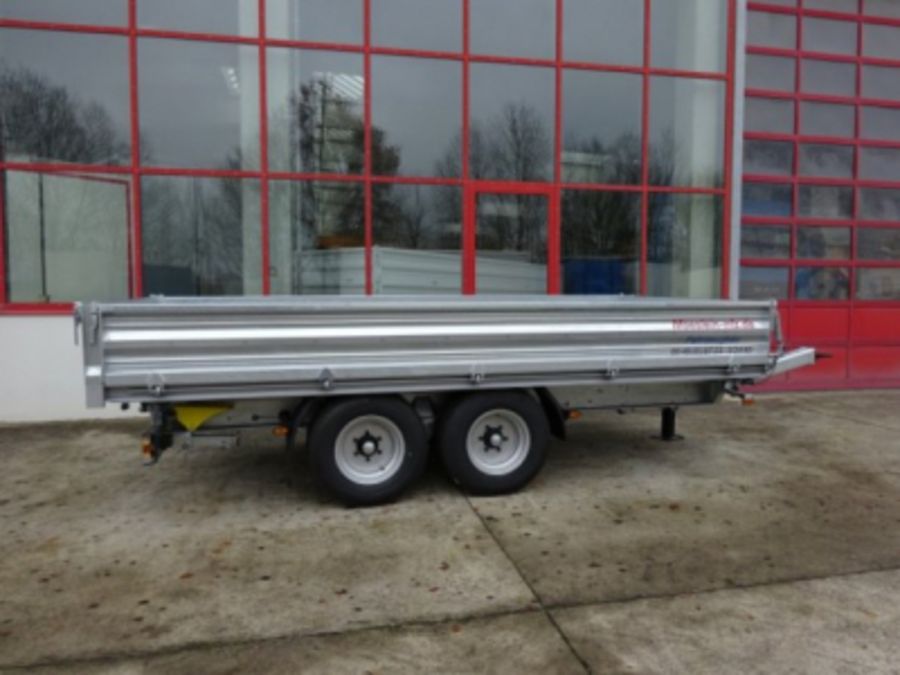

Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105
Trailers Lowbed Trailers Möslein TTD 105

Technical specs - TTD 105 Möslein

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

max. total weight
10500 kg
Net weight
3280 kg
Net load
7220 kg
axle load
10.6 t
Flat platform load surface
5500x2430 mm
Total length
7450 mm
Total width
2550 mm
Number of axles
2
Standard tyres
355/60R18
Model series
TTD

More technical details, like: loading height, front offset platform are available in the full technical specs.
