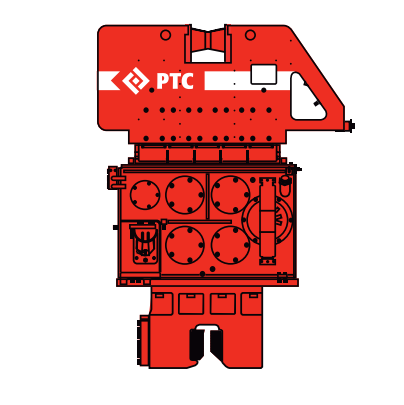

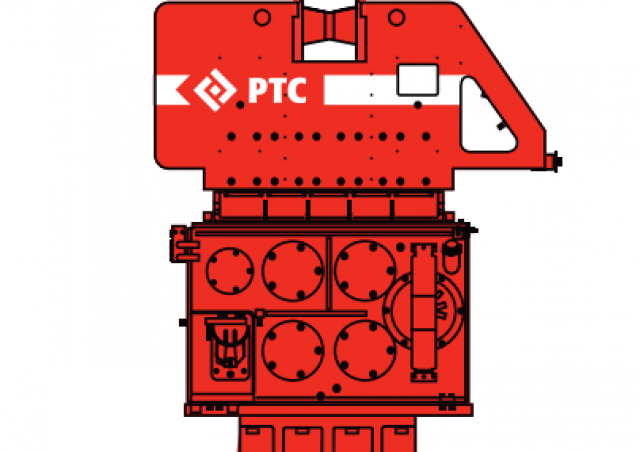

    PTC 20 HFV Specifications & Technical Data (2010-2023)

    Rate this machine now!

    Centrifugal force: 1183kN – Static torque: 0-20kgm – Boom Lifting Torque: 300kN – Amplitude: 16,3mm – Frequency: 38Hz – Drive power: 306kW

    Technical specs - 20 HFV PTC


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Centrifugal force 1183 kN
    • Static torque 0-20 kgm
    • Boom Lifting Torque 300 kN
    • Amplitude 16,3 mm
    • Frequency 38 Hz
    • Drive power 306 kW
    • Weight 3.71 t
    • Clamping tongs d/e/r

    Basic model without leader slide, hydraulic unit

    Special equipment

    • Excavator attachment
    • Aggregate
