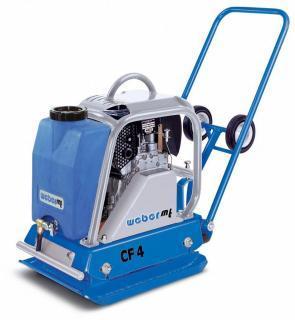

weber mt CF 4 Hd
- Weight:
- 107 kg
- Centrifugal force:
- 20 kN
- Working width:
- 500 mm
- Vibrating frequency:
- 9 Hz
CF 4 Hd weber mt CF 4 Hd Specifications & Technical Data (2001—2009)
Technical specs - CF 4 Hd weber mt
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 107 kg
- Centrifugal force
- 20 kN
- Working width
- 500 mm
- Vibrating frequency
- 9 Hz
- Power source
- B
- Model series
- CF
- Engine manuf.
- Honda
- Engine type
- GX160
- Engine power
- 4 kW
- Displacement
- 0.163 l
- Revolutions at max torque
- 3600 rpm
- No. of cylinders
- 1
More technical details, like: dimension lxwxh, max. torque, cylinder bore x stroke, emission level are available in the full technical specs.
