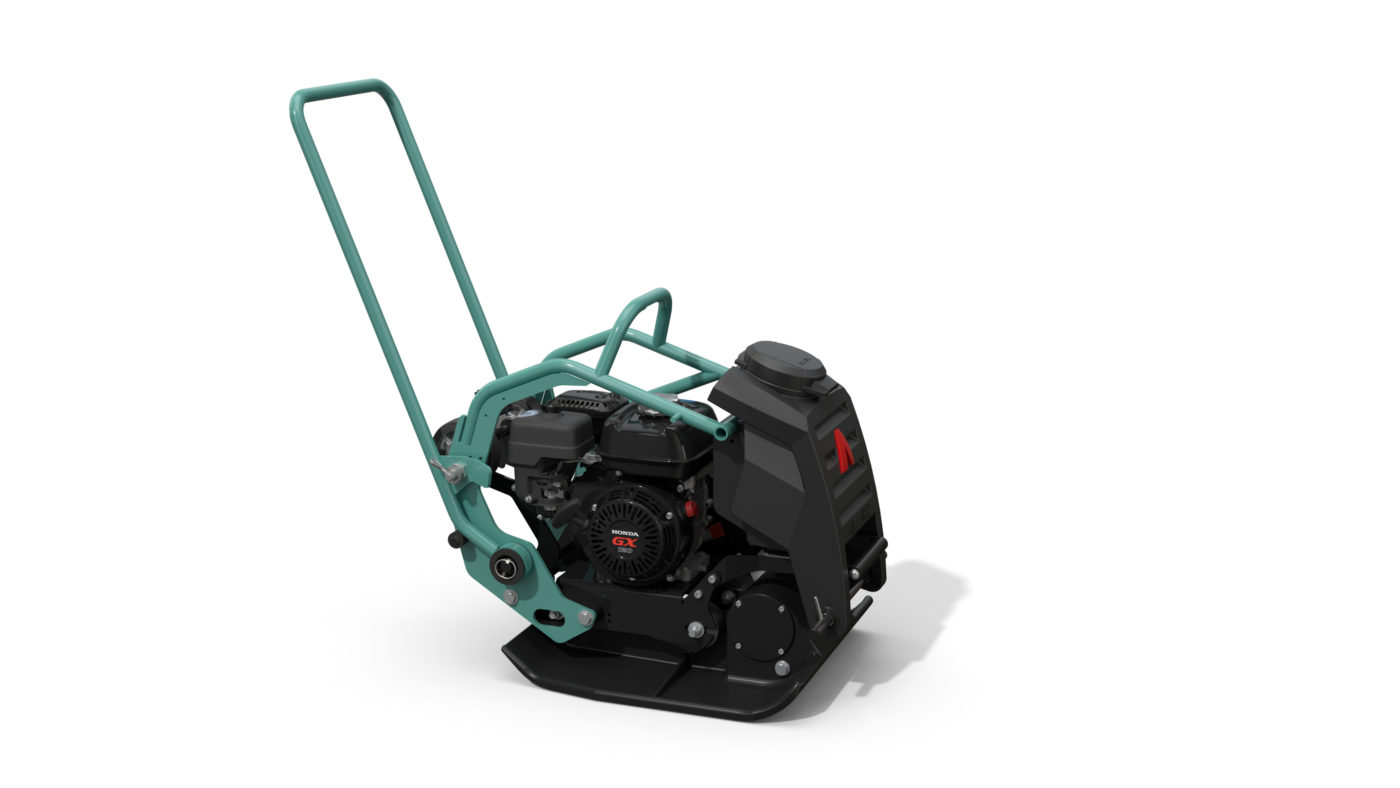

APF 1550 Ammann APF 1550 Specifications & Technical Data (2019—2026)

Water sprinkling system

The tank and sprinkler are combined into a single unit that can be added or removed without any tools. Not even a single screw needs to be adjusted. The sprinklers provide comprehensive surface coverage and can be activated by simply turning a switch. The 10-litre (2.6 U.S. gal) tanks extend intervals between fillings.

Service videos

Sometimes a video tells the story best. That’s why you’ll find a variety of service videos that walk you through service and maintenance processes.

Productivity

Large exciter unit Boosts power, speed, climbing ability and machine life. Toolless mountable water tanks Enable simple refilling. Toolless mountable rubber mats Provide quick changes when it’s time for a new application.

Ergonomics

Low HAV levels (below 2.5 m/sec²) Protect the operator from unwanted vibration. Quick and easy mounting of options (water tank, Vulcolan mat, transport wheels) Make the most of operator and machine time. Machine frame that enables secure grip Helps the operator control the machine, even in difficult spaces and confined areas.

Serviceability

Maintenance-free exciter system Reduces wear and maintenance costs. Full engine frame Protects against damage on the jobsite or during transport. Toolless daily maintenance Fast and convenient for optimal uptime.

Productivity on all ground

Ammann APF plates are great all-around machines, providing the solutions to work on every kind of jobsite where compaction is required. Their small size and productivity make them a valuable addition to every machine fleet.

Toolless mountable water tank

When working with bituminous materials, the APF plate can be equipped with a water tank and sprinkling system. The add-on tank can be quickly mounted on the machine – no tools required. Refilling is easy, too. Simply remove the tank and carry it to the nearest water source.

Reduces unwanted vibration

Ammann plates lead the industry in lowest hand-arm vibration (HAV) levels. In fact, the levels are so minimal that the machines will remain in compliance with the strictest regulations for many years to come. The reduced vibration values (below 2.5 m/sec²) result from the Z-buffer in the handle bar. This patented system enables long work shifts without health risk to the operator – or a need for documentation. The handle can be folded so it is flush with the machine and protected during transport.

Highly manoeuvrable

The powerful forward movement of the plates boosts productivity and enables consistent results, even on steep grades. The base plate is designed to add forward-moving efficiency. The handle and grip on the machine frame help the operator manoeuvre the compactor in tight spaces.

Easy transport

A central, easy-to-grip transport hook makes it simple to lift the plate while loading it into a vehicle or removing it from trenches. The plate is small enough to fit into a vehicle of any size.

Vibratory system

The powerful vibratory system provides the productivity needed. It also features extended service intervals that reduce the cost of ownership and make Ammann plates more environmentally friendly, too.

Base plate

All Ammann forward-moving machines are equipped with base plates made from high-resistant steel. In addition, APF base plates are manufactured with no bended metal and no welded parts, so there are no weak spots. The design further boosts machine life. The base plates feature thicker protection in the rear, where the most wear occurs. The smart design and use of wear-resistant steel are so effective that base plate service is not required during the life of a machine that operates under typical working conditions.

Superior Mobility and Performance

The APF 10/33, APF 12/40 and APF 12/50 are the lightest and smallest vibratory plates in the Ammann portfolio. Their compact size makes them ideally suited to small jobsites and confined areas. These forward-moving vibratory plate compactors are often used by landscape contractors to reach hard-to-access spots. The APF 10/33, APF 12/40 and APF 12/50 are also popular with home-owners because of their manageable size. When the work is done, the compactors are small enough to fit in the boot of a car. The APF 12/50 features a working width of 500 mm (19.7 in).

Small All-Around Machines for Every Task

These units have been designed to work in confined spaces on soil and on asphalt. The range of applications includes light to medium sized patchwork and tight jobsites, including obstacles such as curbs or retaining walls. A water sprinkling system with a water tank is available as an option.

Broad Application Range

The APF 15/40 utilises key options to make the forward-moving plate extremely versatile. An optional Vulcolan mat, which can be installed without a single tool, provides quick adjustment when working with paving stones. A sprinkling system enables work on asphalt. The plate features a working width of 400 mm (15.75 in). The plate’s technologically advanced exciter unit is maintenance free, with cylindrical bearings that reduce wear. The exciter system also provides significant forward-moving power to enhance productivity in challenging materials and on steep grades. Ammann plates lead the industry in lowest hand-arm vibration (HAV) levels. The levels are so minimal that the machines will remain in compliance with the strictest regulations for many years to come.

Permanently installed transport wheels

The transport wheels can be dropped with a foot release, preventing fingers from being pinched and reducing stress on the operator’s back. The high quality wheels are durable and enable quick and easy transport around the jobsite.

Toolless mountable rubber mat

This optional mat can be mounted in a few seconds, preparing the machine for work on paving stones and protecting the stones’ edges from cracking. Installation is extremely easy: The mat wraps around the foot and is secured with two hooks.

Service app

The service app for Ammann machines impresses machine operators who are already benefiting from the advantages of the free application. The easy-to-use app provides machine operators working on site quick and uncomplicated access to machine documentation.

Ammann Plates

All Ammann plates are easy to operate, making them ideal for rental fleets. They also are versatile, with an ability to easily adjust to varied applications. Many are available with diesel or petrol engines.

The ergonomics leader

Ammann APF plates are at the top of the class when it comes to operator safety and ergonomics. The plates offer the reliability and precise control necessary to adjust to changing jobsite challenges. Intuitive operation helps plate operators of all experience levels succeed.

V belt protection

Machine uptime is maximised by large side covers, which fully protect the V belts that provide the compaction power.

APF 20/50 Hatz

The APF 20/50 Hatz combines all the benefits of other Ammann plates – but with a diesel engine that makes fueling at the jobsite more convenient. The diesel engine provides engine power of 3.2 kW (4.3 hp) and also excels in higher altitudes.
