Technical specs - DPU6555Hec Wacker Neuson

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
490 kg
Centrifugal force
100 kN
Working width
710 mm
Vibrating frequency
69 Hz
Power source
D
Model series
DPU
Engine manuf.
Hatz
Engine type
1D81S
Engine power
10.1 kW
Displacement
0.667 l
Revolutions at max torque
2800 rpm

More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Download datasheets (PDF)

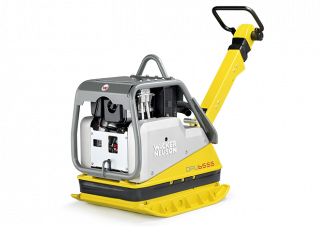

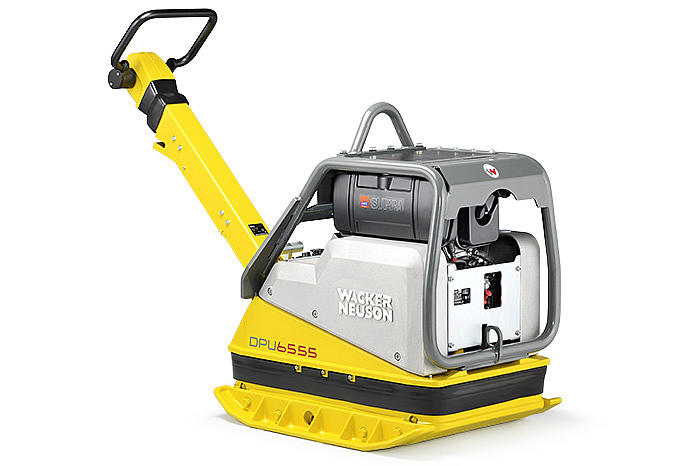

Wacker Neuson DPU6555Hec overview

Wacker Neuson DPU6555He c features overview

Unbeatable on any subsurface

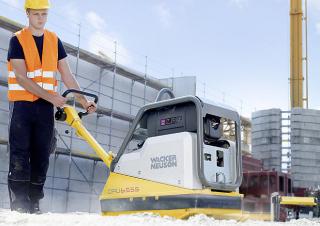

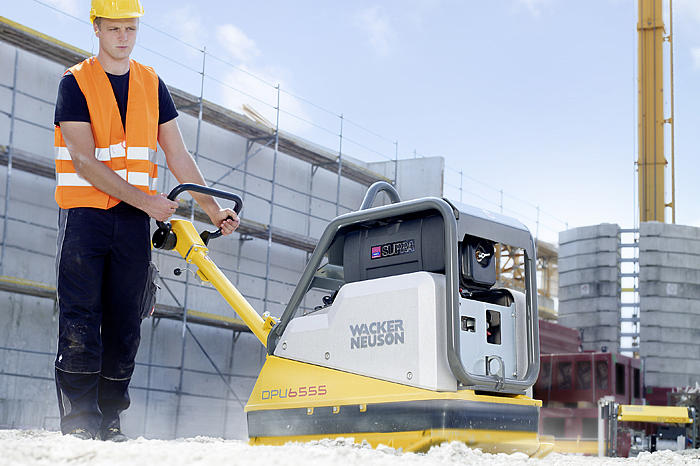

Thanks to its enormous compaction force combined with a quick forward and reverse travel, the DPU6555 offers an extremely high level of productivity. It is an all-rounder for all job sites where extreme demands are placed on the performance efficiency of a unit. In addition, it offers excellent characteristics in terms of service life and operating comfort. Optimal application areas are the compaction of frost coverings and base layers in street, path and parking lot construction as well as backfilling buildings. Thanks to a frequency of 69 Hz, the DPU6555 is universally applicable and even reliably compacts heavy interlocking paving stones. The model version DPU6555He is equipped with Compatec, the compaction control by Wacker Neuson.
