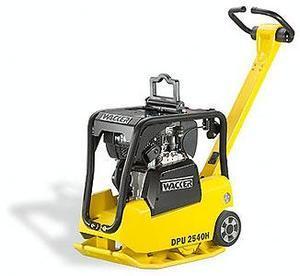

DPU 2540H Wacker Neuson DPU 2540H Specifications & Technical Data (2008—2021)
Visit Wacker Neuson live at
Technical specs - DPU 2540H Wacker Neuson
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 154 kg
- Centrifugal force
- 25 kN
- Working width
- 400 mm
- Vibrating frequency
- 90 Hz
- Power source
- D
- Model series
- DPU
- Engine manuf.
- Hatz
- Engine type
- 1B20
- Engine power
- 3.4 kW
- Displacement
- 0.232 l
- Revolutions at max torque
- 3200 rpm
More technical details, like: dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Download datasheets (PDF)
Events
Visit Wacker Neuson live at
Buy & Rent
Compare Wacker Neuson DPU 2540H with similar Reversible Vibratory Plate Compactors
Wacker Neuson DPU 2540H
- Weight:
- 154 kg
- Centrifugal force:
- 25 kN
- Working width:
- 400 mm
- Vibrating frequency:
- 90 Hz
.jpg)
Atlas Copco LG 160
- Weight:
- 169 kg
- Centrifugal force:
- 28 kN
- Working width:
- 330 mm
- Vibrating frequency:
- 80 Hz
Wacker DPU 2450 H
- Weight:
- 151 kg
- Centrifugal force:
- 24 kN
- Working width:
- 500 mm
- Vibrating frequency:
- 90 Hz
Dynapac LG 140
- Weight:
- 155 kg
- Centrifugal force:
- 22 kN
- Working width:
- 330 mm
- Vibrating frequency:
- 65 Hz
weber mt CR 2
- Weight:
- 156 kg
- Centrifugal force:
- 25 kN
- Working width:
- 450 mm
- Vibrating frequency:
- 100 Hz
