APH 110-95 Ammann APH 110-95 Specifications & Technical Data (2019—2026)

The Right Fit

Ammann APH Hydrostatic Vibratory Plates deliver compaction power and productivity to jobsites. The plates have drive and climbing power, even when working in cohesive soils. The compactors enable smooth directional changes and easy operation, even by the inexperienced. Operators can adjust to jobsite conditions by simply regulating the engine revolutions. Lowest hand-arm-vibrations to the operator are one of the key features of these plates, enabling operators to work long shifts without the need of documentation for operator safety regulations.

Technological Features Add Efficiencies

Customer input plays a crucial role in developing the features that are built into all Ammann products, including APH Vibratory Plates. Those requests include maximum compaction output and the ability to cover large areas efficiently and consistently. In addition, simple operation and safety during workshifts are essential.

Productivity at Its Best

The industry-leading compaction power and the precise control of the APH Vibratory Plates combine with the heavy weight of the plates to provide unmatched performance, climbing ability and responsiveness. APH Plates from Ammann are providing excellent compaction results where other plates face their limits.

Superior Compaction Performance

These plates are at their best when productivity matters most, regardless of the application. The powerful vibratory system delivers strong compaction forces and fast working speeds. The machines can compact large areas in the same amount of time as some double-drum rollers. The plates' unmatched manoeuvrability enables access to confined areas that a heavier roller could never reach.

Intelligent Compaction for Maximum Productivity

Ammann Compaction Expert (ACE) is an automated compaction measurement and control system. It is the same technology that has been used on Ammann heavy compaction machines for years. ACE provides operators with an accurate indication of soil stiffness and whether desired compaction has been achieved. This improves operator output and minimises the time needed to reach compaction goals.

Fully Hydraulic Drive

The APH plates' hydraulic drive system provides significantly more force than its conventional counterparts. This makes Ammann APH plates the right choice for those who require a machine that delivers productivity while achieving compaction goals for quality and density.

Ammann remains the technological leader in plate compaction with its patented triple-shaft exciter system

This technologically advanced system keeps plate movement consistent, which in turn enables smooth travel – even through heavy, cohesive soils. The system also helps the machines effortlessly overcome steep grades. APH machines are impressive climbers even while backfilling saturated areas – work that can leave competitive products at a standstill. The success of the plates starts with the use of the third shaft. With twin-shaft systems, plates can rock back and forth and their leading edge can turn downward and become stuck, particularly in saturated materials. With the Ammann exciter system, the third shaft prevents that back-and-forth movement by providing another force. This creates more consistent drive of the plates and keeps them even, steady and above the surface – even on saturated jobsites.

The Right Fit on Your Jobsite

The triple-shaft technology and size of the APH plates help them power through varied ground conditions on almost any jobsite. This versatility makes the plates an essential part of any fleet.

Soil and Sand

Smooth operation combines with the unique vibratory system to push through wet and saturated ground that can leave lesser plates stuck.

Jobsite Challenges

Jobsites can present a variety of challenges. Operator friendly features from Ammann enable productivity and let the crew focus on the task at hand. Unique technologies built into Ammann machines deliver the quality and productivity you need and help provide you with a competitive advantage.

Convenient orbitrol control

Orbitrol steering controls the adjustment of the centrifugal weights, allowing a smooth change of direction. Ammann developed the unique Ammann Orbitrol steering system to provide the accuracy needed on the jobsite. Machine speed and direction can be adjusted by a simple turn of the drive knob. The machine also can hover and provide on-the-spot compaction for challenging areas. Orbitrol steering also helps with productivity and safety in corners and other tight spots.

Twin-Shaft Exciter System

The APH 50/75 and APH 60/85 Hydrostatic Plate Compactors feature a conventional twin-shaft exciter system that packs powerful compaction forces. These machines are highly reliable and trusted in the marketplace because of their robust design and long component life. They can be operated easily and comfortably, even in tight areas, and works well around obstacles such as columns and in cohesive materials. The machines are also smooth when changing directions.

High Compaction Power

These hydrostatic vibratory plate compactors distinguish themselves with high compaction power and climbing ability. Several options, such as an electric starter, extension plates, operation hour meter and ACEecon allow for customisation to make the plate fit your particular needs.

The Superior Vibratory Plate Coming from Ammann

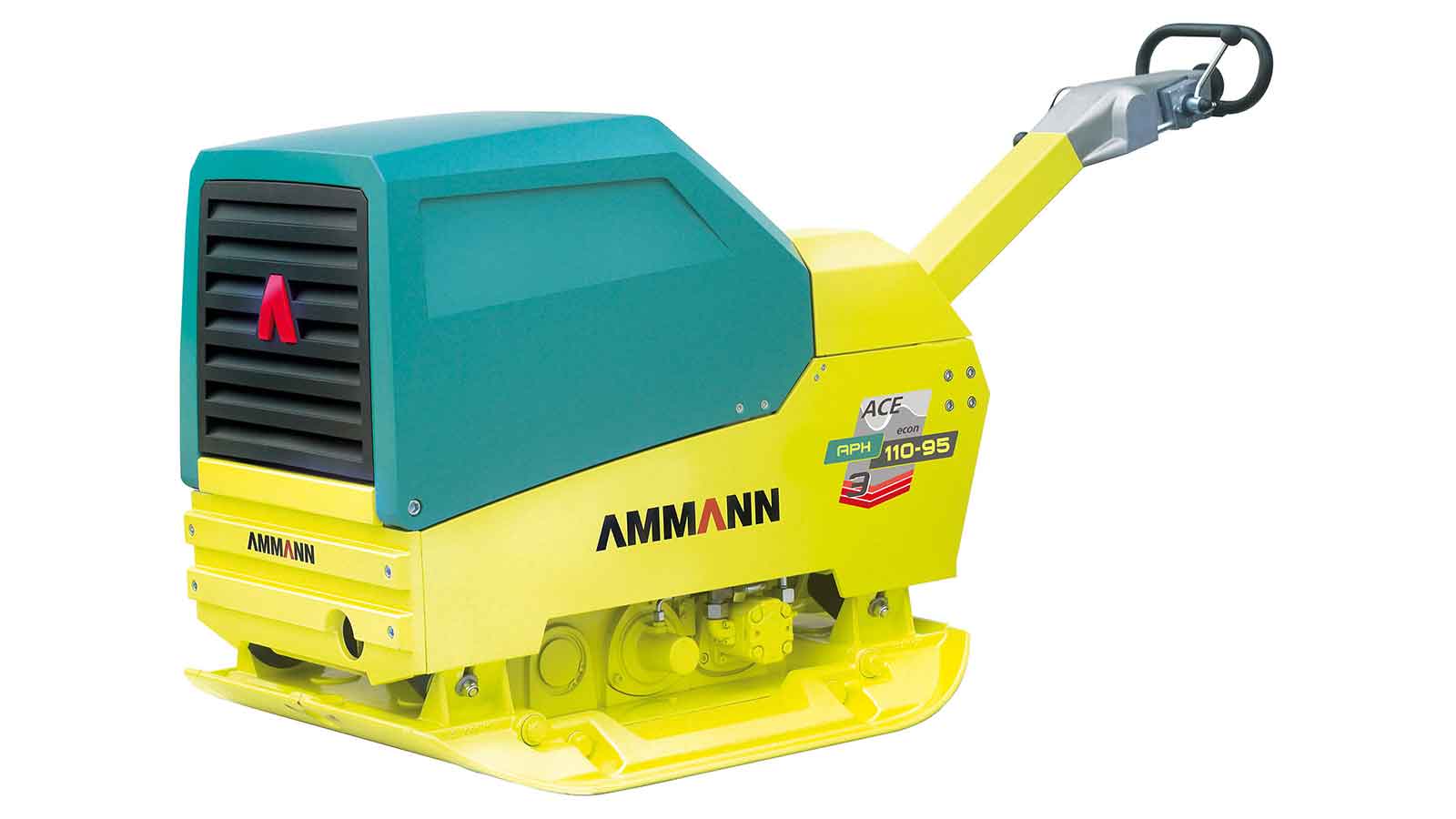

The APH 110/95 is the premiere vibratory plate compactor in the Ammann lineup in size and compaction punch. It is the heaviest plate, with weights ranging from 825 kg (1819 lb) to 877 kg (1935 lb). With its high compaction capabilities the machine matches the output of a 7 t soil compactor. A powerful Kubota diesel engine provides sufficient power for the heavy-duty tasks this machine faces. The APH 110/95 is built for professionals with most features – including the ACEecon compaction measuring system.

Customisation Options

No jobsite and no operator is like another. APH Plates from Ammann offer several options, allowing for customisation to make the plate fit your particular needs.

Extension plates

Extension plates in 2 different sizes expand the compaction surface area and add productivity. Adding an extension requires the adjustment of only 4 screws per side and can be quickly accomplished on the jobsite.

Secure transport

All APH plates are equipped with lifting and tie-down points that are based on European Rental Association (ERA) guidelines. The tie-down points make securing the machine fast and easy, ensuring success so that risks are minimised. A central lifting hook is integrated into the frame.

Thick Paving Stones

Each APH plate can be equipped with an optional paving pad – a rubber mat that quickly attaches beneath the base plate – to protect the stones from being cracked, chipped or scratched.

Rubber mat

The mats are attached to the plates and prevent cracking and breaking of paving stones and other sensitive materials while still delivering the required compaction power. Installation of the vulcolan mats is easy and can be done directly on site.
