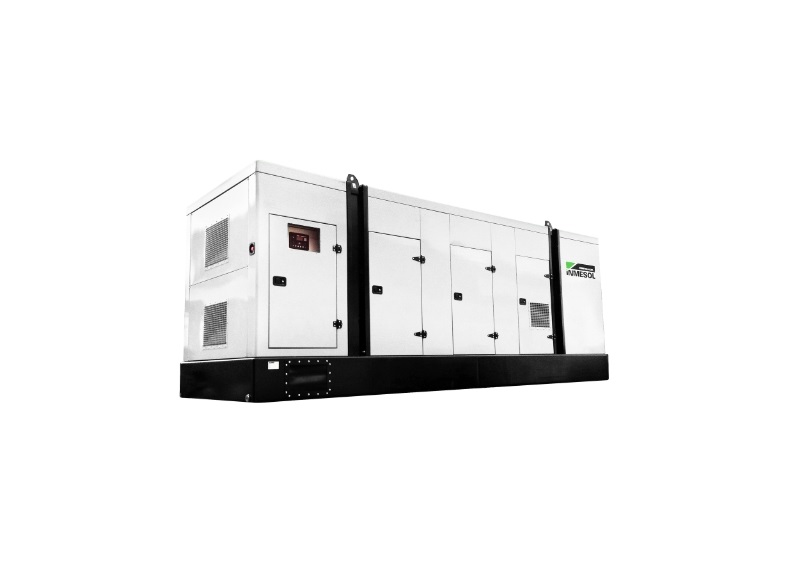

IC-1010 INMESOL IC-1010 Specifications & Technical Data (2024—2026)

Nominal output: 917KVA – Nominal voltage: 480V – Weight: 11000kg – Type of cooling: w – Transport length: 6.5m – Transport width: 2.22m

Technical specs - IC-1010 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
917 KVA
Nominal voltage
480 V
Weight
11000 kg
Type of cooling
w
Transport length
6.5 m
Transport width
2.22 m
Transport height
2.636 m
Model series
IC
Engine manuf.
Cummins
Engine type
QSK23G3
Engine power
776 kW
Displacement
23.1 l
Revolutions at max torque
1800 rpm
No. of cylinders
6
Cylinder bore x stroke
170x170 mm

More technical details, like: nominal current, carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
