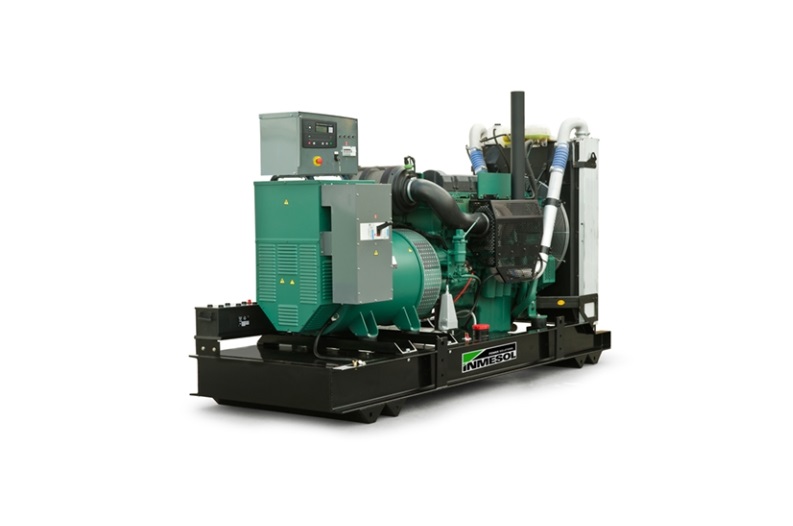

INMESOL AV-360 Specifications & Technical Data (2021-2024)

Rate this machine now!

Nominal output: 356.9KVA – Nominal voltage: 400V – Weight: 2800kg – Type of cooling: l – Transport length: 3m – Transport width: 1.2m

Technical specs - AV-360 INMESOL


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Nominal output 356.9 KVA
  • Nominal voltage 400 V
  • Weight 2800 kg
  • Type of cooling l
  • Transport length 3 m
  • Transport width 1.2 m
  • Transport height 2.16 m
  • Model series AV
  • Engine manuf. Volvo
  • Engine type TAD843GE
  • Engine power 308 kW
  • Displacement 7.7 l
  • No. of cylinders 6
  • Cylinder bore x stroke 110x135 mm

More technical details, like: fuel consumption range (min - max), nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

  • Electric starter
  • silenced
  • Earth leakage monitor
  • Automatic oil deficiency shutoff
  • Thermo magnetic switch
  • Ground fault circuit interrupter
