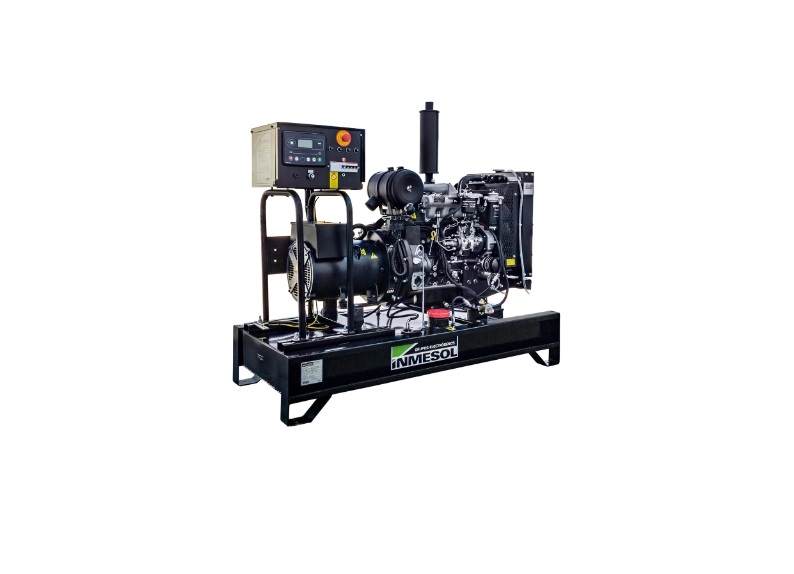

INMESOL AR-7
- Nominal output:
- 6 KVA
- Nominal current:
- A
- Nominal voltage:
- 230 V
- Weight:
- 310 kg
AR-7 INMESOL AR-7 Specifications & Technical Data (2024—2026)
Technical specs - AR-7 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 6 KVA
- Nominal current
- A
- Nominal voltage
- 230 V
- Weight
- 310 kg
- Type of cooling
- w
- Transport length
- 1.3 m
- Transport width
- 0.58 m
- Transport height
- 1.298 m
- Model series
- AR
- Engine manuf.
- Raywin
- Engine type
- 3C11G3/A
- Engine power
- 9.1 kW
- Displacement
- 1.07 l
- Revolutions at max torque
- 1500 rpm
- No. of cylinders
- 3
- Cylinder bore x stroke
- 76x78 mm
More technical details, like: carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
