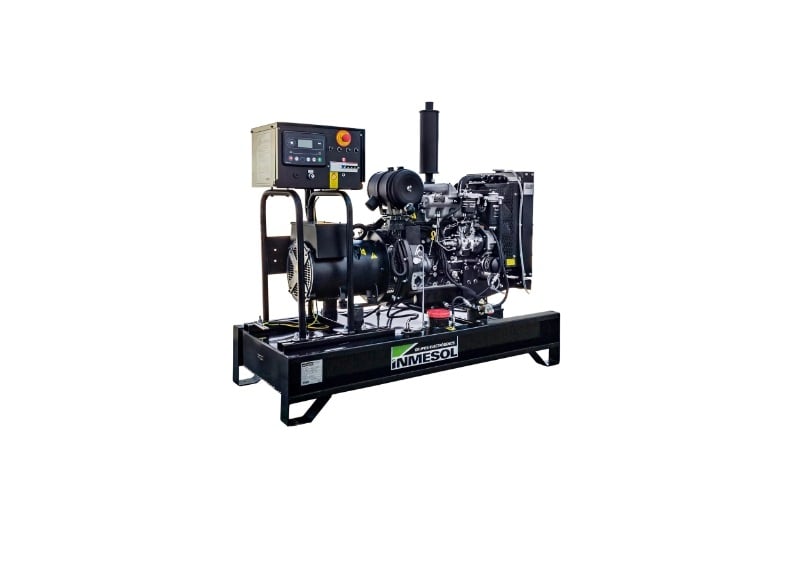

AR-18 INMESOL AR-18 Specifications & Technical Data (2024—2026)

Nominal output: 18KVA – Nominal voltage: 230V – Weight: 480kg – Type of cooling: w – Transport length: 1.314m – Transport width: 0.602m

Technical specs - AR-18 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
18 KVA
Nominal voltage
230 V
Weight
480 kg
Type of cooling
w
Transport length
1.314 m
Transport width
0.602 m
Transport height
1.425 m
Model series
AR
Engine manuf.
Raywin
Engine type
4D24G4/A
Engine power
20.4 kW
Displacement
2.45 l
Revolutions at max torque
1500 rpm
No. of cylinders
4
Cylinder bore x stroke
87x103 mm
Emission level
IIIA

More technical details, like: nominal current, carriage, dimension lxwxh, max. torque are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No

Download datasheets (PDF)
