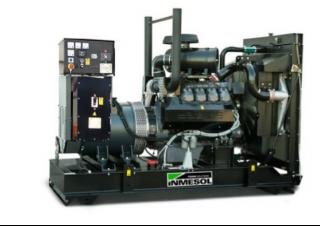

AD-500 INMESOL AD-500 Specifications & Technical Data (2018—2024)

Nominal output: 450KVA – Nominal voltage: 400V – Weight: 3350kg – Type of cooling: l – Transport length: 3.03m – Transport width: 1.815m

Power Generators Diesel Power Generators INMESOL AD-500

Technical specs - AD-500 INMESOL

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Nominal output
450 KVA
Nominal voltage
400 V
Weight
3350 kg
Type of cooling
l
Transport length
3.03 m
Transport width
1.815 m
Transport height
2.41 m
Model series
AD
Engine manuf.
Deutz
Engine type
BF8M1015C2
Engine power
393 kW
Displacement
15.9 l
No. of cylinders
8
Cylinder bore x stroke
132x145 mm

More technical details, like: nominal current, carriage, dimension lxwxh, revolutions at max torque, max. torque, emission level are available in the full technical specs.

Basic model

Special equipment

Electric starter
Yes
silenced
No
Earth leakage monitor
No
Automatic oil deficiency shutoff
No
Thermo magnetic switch
No
Ground fault circuit interrupter
No
