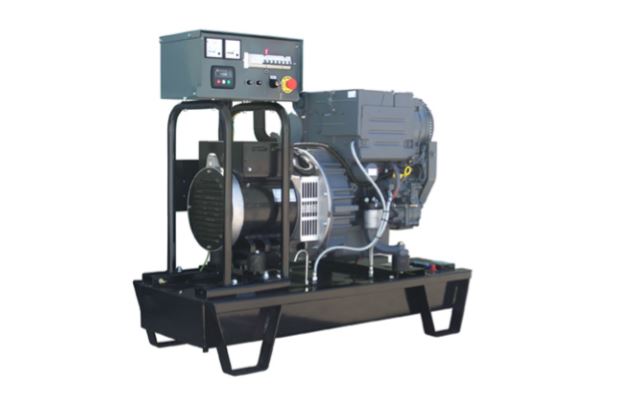

INMESOL AAD-014
- Nominal output:
- 13 KVA
- Nominal voltage:
- 400 V
- Weight:
- 459 kg
- Type of cooling:
- l
AAD-014 INMESOL AAD-014 Specifications & Technical Data (2018—2024)
.jpg)
Technical specs - AAD-014 INMESOL
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Nominal output
- 13 KVA
- Nominal voltage
- 400 V
- Weight
- 459 kg
- Type of cooling
- l
- Transport length
- 1.3 m
- Transport width
- 0.58 m
- Transport height
- 1.223 m
- Model series
- AAD
- Engine manuf.
- Deutz
- Engine type
- F2L2011
- Engine power
- 12 kW
- Displacement
- 1.6 l
- Revolutions at max torque
- 1500 rpm
- No. of cylinders
- 2
- Cylinder bore x stroke
- 94x112 mm
More technical details, like: nominal current, carriage, dimension lxwxh, max. torque, emission level are available in the full technical specs.
Basic model
Special equipment
- Electric starter
-
Yes
- silenced
-
No
- Earth leakage monitor
-
No
- Automatic oil deficiency shutoff
-
No
- Thermo magnetic switch
-
No
- Ground fault circuit interrupter
-
No
