CPLT V15 Chicago Pneumatic CPLT V15 Specifications & Technical Data (2022—2026)

Light coverage: 4000m² – Mast height: 7.5m – Mast type: Manual – Operating weight: 694kg – Power source: Diesel – Total width: 1100mm

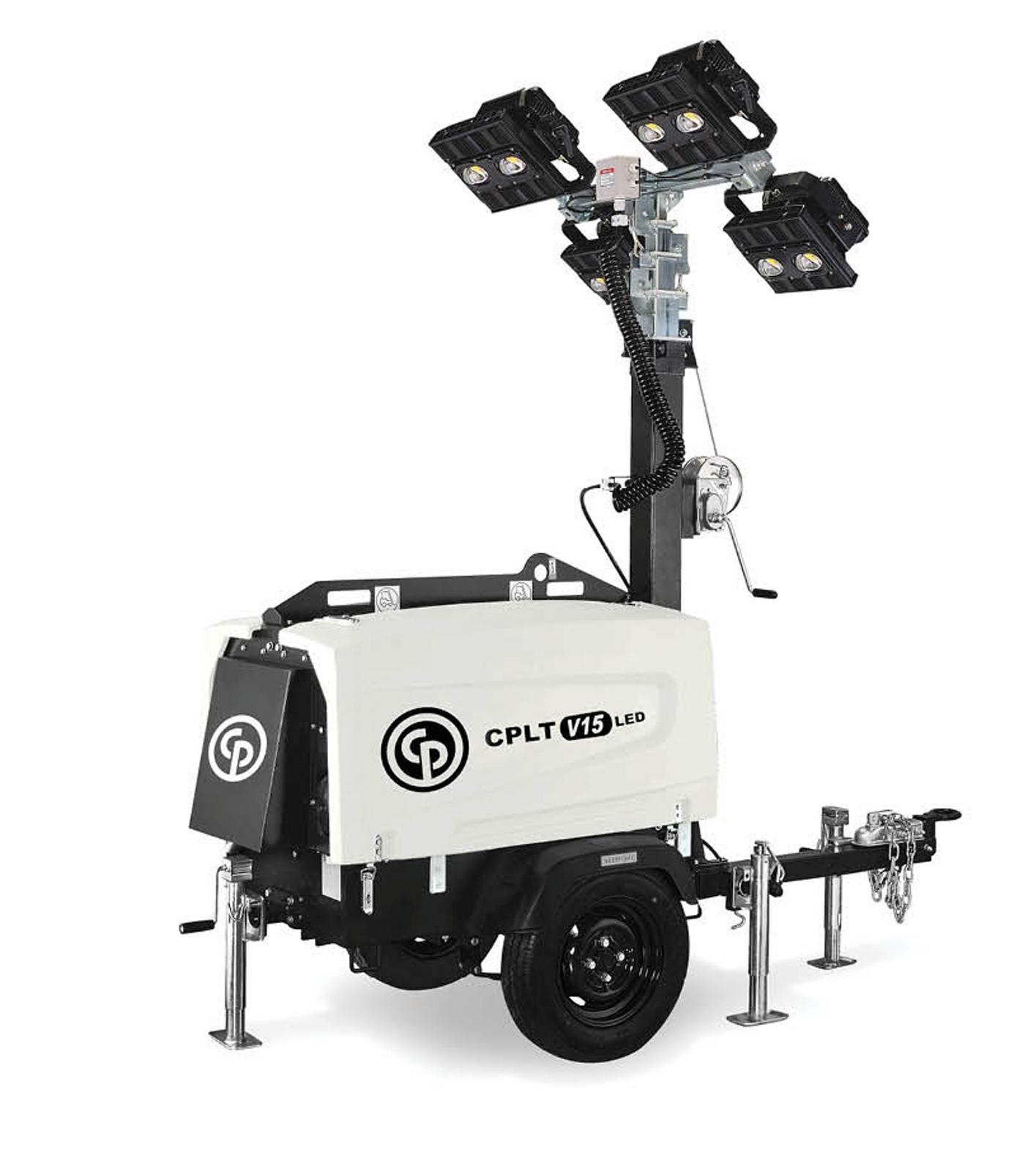

Light Towers Chicago Pneumatic CPLT V15

Technical specs - CPLT V15 Chicago Pneumatic

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Light coverage
4000 m²
Mast height
7.5 m
Mast type
Manual
Operating weight
694 kg
Power source
Diesel
Total width
1100 mm
Total length
1670 mm
Total height
2500 mm
Frequency
60 Hz
Lamps
Metal Halide
Voltage
230 V
Operating time
57
Engine manuf.
Kubota
Engine type
Z482
Engine power
8.1 kW
No. of cylinders
2
Emission level
Stage V

More technical details, like: model series, dimension lxwxh, displacement, revolutions at max torque, max. torque, cylinder bore x stroke, weight are available in the full technical specs.
