SR2454 Sandvik Screener Specs, Dimensions & Technical Data - 2017 - 2022

Weight: 16.7t – Plant type: KU – Screen width: 2.4m – Screen length: 5m – Drive power: 5x7.5kW – Maximum Number of screens: 1…

Weight: 16.7t – Plant type: KU – Screen width: 2.4m – Screen length: 5m – Drive power: 5x7.5kW – Maximum Number of screens: 1

Check out detailed dimensions, specifications, information and technical data for Sandvik SR2454 screener manufactured between 2017 - 2022. Get more in-depth insight with Sandvik SR2454 screening machine. See information, like: Weight: 16.7t – Plant type: KU – Screen width: 2.4m – Screen length: 5m – Drive power: 5x7.5kW – Maximum Number of screens: 1 and more.

Mobile Screening Plants Sandvik SR2454

Technical specs - SR2454 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.7 t
Plant type
KU
Screen width
2.4 m
Screen length
5 m
Drive power
5x7.5 kW
Maximum Number of screens
1
Model series
SR

More technical details, like: transport length, transport width, transport height, type of screen, drive, hopper capacity, main conveyor width, side conveyor width are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik SR2454 overview

Material

Roller screen crusher

This equipment is specially designed for coal-fired power plants, in order to remove impurities of commercial coal as well as to crush down existing coal lumps to acceptable sizes. The Roller Screen Crusher includes: dust encapsulation, pre-screen, two crusher drums and after-screen. A pre-crusher might be necessary to put on top of the pre-screener if many lumps are present (e.g. frozen coal). The crusher drums have a releasing mechanism to enable wood pieces, stones and other impurities to be rejected. The sensitivity of the release mechanism is adjustable.


Motor

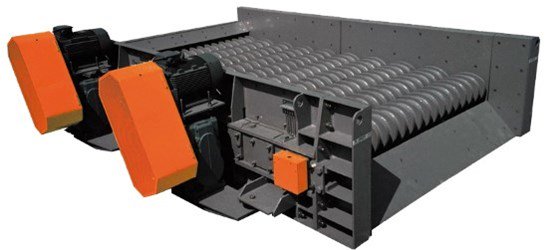

SR Roller Screen

Standard delivery includes frame, rollers, power transmission parts, drive unit(s) with motor(s), rotation detector, surface treatment according to Sandvik S&F standard, components according to supplier’s standard painting. Inside surface as well as the rollers have primer coat only. Installation, operating and maintenance manuals.
