SG2151 Sandvik Screener Specs, Dimensions & Technical Data - 2017 - 2022

Weight: 11.64t – Plant type: KU – Screen width: 2.1m – Screen length: 4.8m – Drive power: 2x18.5kW – Maximum Number of screens: 1…

Weight: 11.64t – Plant type: KU – Screen width: 2.1m – Screen length: 4.8m – Drive power: 2x18.5kW – Maximum Number of screens: 1

Check out detailed dimensions, specifications, information and technical data for Sandvik SG2151 screener manufactured between 2017 - 2022. Get more in-depth insight with Sandvik SG2151 screening machine. See information, like: Weight: 11.64t – Plant type: KU – Screen width: 2.1m – Screen length: 4.8m – Drive power: 2x18.5kW – Maximum Number of screens: 1 and more.

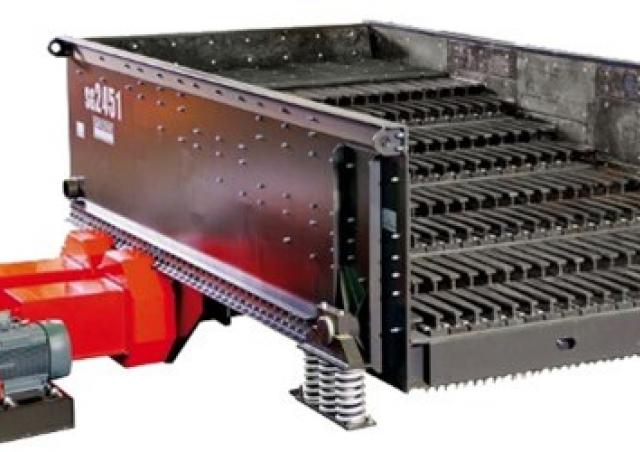

Mobile Screening Plants Sandvik SG2151

Visit Sandvik live at

Technical specs - SG2151 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
11.64 t
Plant type
KU
Screen width
2.1 m
Screen length
4.8 m
Drive power
2x18.5 kW
Maximum Number of screens
1
Model series
SG

More technical details, like: transport length, transport width, transport height, type of screen, drive, hopper capacity, main conveyor width, side conveyor width are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik SG2151 overview

Screening Deck

Sg-h grizzly screens

Bolted screen body Side plates with top and bottom flanges Top deck is fitted with two integral grizzly sections, featuring diverging gap between the bars The grizzly is made of AR steel, one piece for each grizzly section and bolts to the crossbeams Bottom deck designed for side-tensioned media. C-type clamps are used for bottom deck Bolted AR liners to protect the sidewalls at the top and bottom decks Discharge plate at the bottom deck (i.e. equipped with 10 mm thick AR steel plate) Surface treatment according to Sandvik standard, components according to supplier’s std painting. Installation, operating and maintenance manuals


Options

Perforated steel plates or self-supporting rubber panels (i.e. bottom deck) Preparation (in the factory before dispatch) for a long period storage


Motor

Drive transmission includes

Motor pulley, V-belts, sheave and pivoting motor base Transmission guard Flywheel guard (i.e. the flywheel is positioned at the opposite side of the transmission)


Dimensions / Weight

Circular motion mechanism includes

Eccentric shaft with spherical roller bearings Unbalanced flywheels with external counterweights (i.e. facilitates stroke adjustments) The mechanism tube is protected by rubber liner
