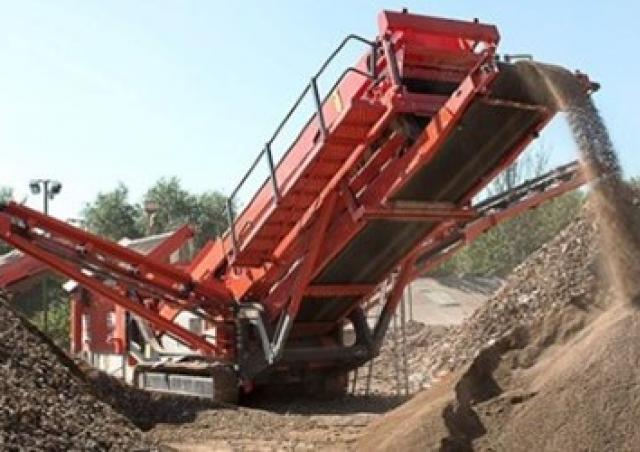

Mobile Screening Plants Sandvik QA441

Visit Sandvik live at

Technical specs - QA441 Sandvik

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
30.3 t
Transport length
18.68 m
Transport width
3 m
Transport height
3.5 m
Plant type
RM
Screen width
1.524 m
Screen length
3.048 m
Drive
D/Hy
Drive power
74.5 kW
Maximum Number of screens
2
Hopper capacity
7.5 m³
Main conveyor width
1000 mm
Side conveyor width
700 mm
Model series
QA

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Sandvik QA441 overview

Screening Deck

Doublescreen Technology

At the heart of the QA441 is the patented Doublescreen box, boasting two independent double deck screen boxes. The primary screen works as a fines extractor, whilst the secondary screen operates as a grader. Two processes combined on one plant, both primary and secondary screening angles can be adjusted relative to each other. The QA441 offers screening solutions on one mobile double deck screen offering two screen boxes providing an unsurpassed level of separation. The versatility of the Doublescreen box provides a highly productive and efficient screening solution, capable of handling a wide range of materials, at very high rates of production.


Features Include

High production capabilities due to its phenomenal screening area Two 3.05 m x 1.5 m / 10’ x 5’ independently adjustable screenboxes Primary screen works as a fines extractor, whilst secondary screen operates as a grader Large volume hopper complete with remote control hydraulic tipping grid User-friendly control panel with sequential start-up for ease of operation Hydraulic folding 3.5m side conveyors for ease of maintenance Wide range of options to suit different applications Machine designed for optimum fuel economy and low operating costs.
