Warrior 600 Powerscreen Screener Specs, Dimensions & Technical Data - 2017 - 2026

Weight: 12t – Transport length: 10.98m – Transport width: 2.25m – Transport height: 2.55m – Type of screen: MS – Plant type: RM…

Weight: 12t – Transport length: 10.98m – Transport width: 2.25m – Transport height: 2.55m – Type of screen: MS – Plant type: RM

Check out detailed dimensions, specifications, information and technical data for Powerscreen Warrior 600 screener manufactured between 2017 - 2026. Get more in-depth insight with Powerscreen Warrior 600 screening machine. See information, like: Weight: 12t – Transport length: 10.98m – Transport width: 2.25m – Transport height: 2.55m – Type of screen: MS – Plant type: RM and more.

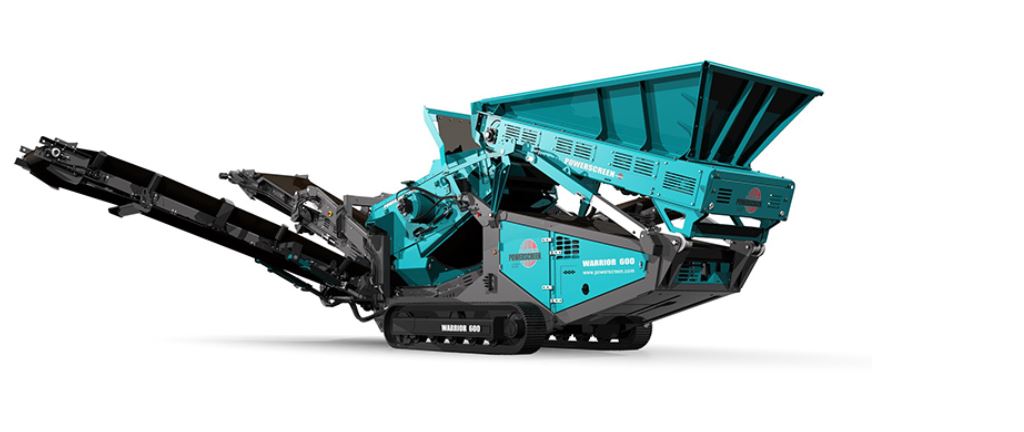

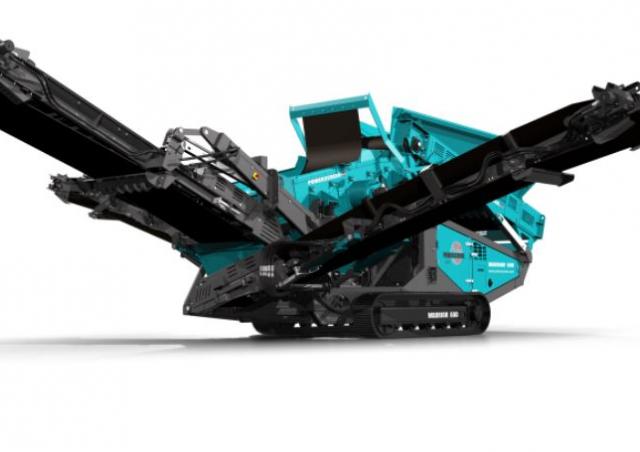

Mobile Screening Plants Powerscreen Warrior 600
Mobile Screening Plants Powerscreen Warrior 600
Mobile Screening Plants Powerscreen Warrior 600
Mobile Screening Plants Powerscreen Warrior 600
Mobile Screening Plants Powerscreen Warrior 600
Mobile Screening Plants Powerscreen Warrior 600

Technical specs - Warrior 600 Powerscreen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12 t
Transport length
10.98 m
Transport width
2.25 m
Transport height
2.55 m
Type of screen
MS
Plant type
RM
Screen width
2.34 m
Screen length
1.17 m
Drive power
36.4 kW
Hopper capacity
3 m³
Main conveyor width
1000 mm
Side conveyor width
650 mm
Model series
Warrior

More technical details, like: drive, maximum number of screens are available in the full technical specs.

Type of plant: KU = skid unit, PB = impeller breaker , RM = mobile track, RA = mobile wheeled, CO = with container

Download datasheets (PDF)

Powerscreen Warrior 600 overview

Screening Deck

Warrior 600

The Powerscreen Warrior 600 is the most compact of Powerscreen’s heavy duty scalping screen Warrior range. One of the key features of the Warrior 600 is its size - the compact transport envelope allows the unit to be transported in a shipping container, and is small and light enough to move between sites with minimal cost. It also means that it is highly mobile on site, even in built-up areas. The machine is a multipurpose heavy duty incline 2 deck screen, capable of stockpiling, scalping before and after crushing units, or as a standalone unit. Its highly aggressive screen can accept bofor bars, fingers, punch plate and mesh and punch plates along with other application specific media types. User benefits include a rapid set-up time and ease of operation aided by hydraulic folding side conveyors, rigid feed hopper sides and two speed tracks.
